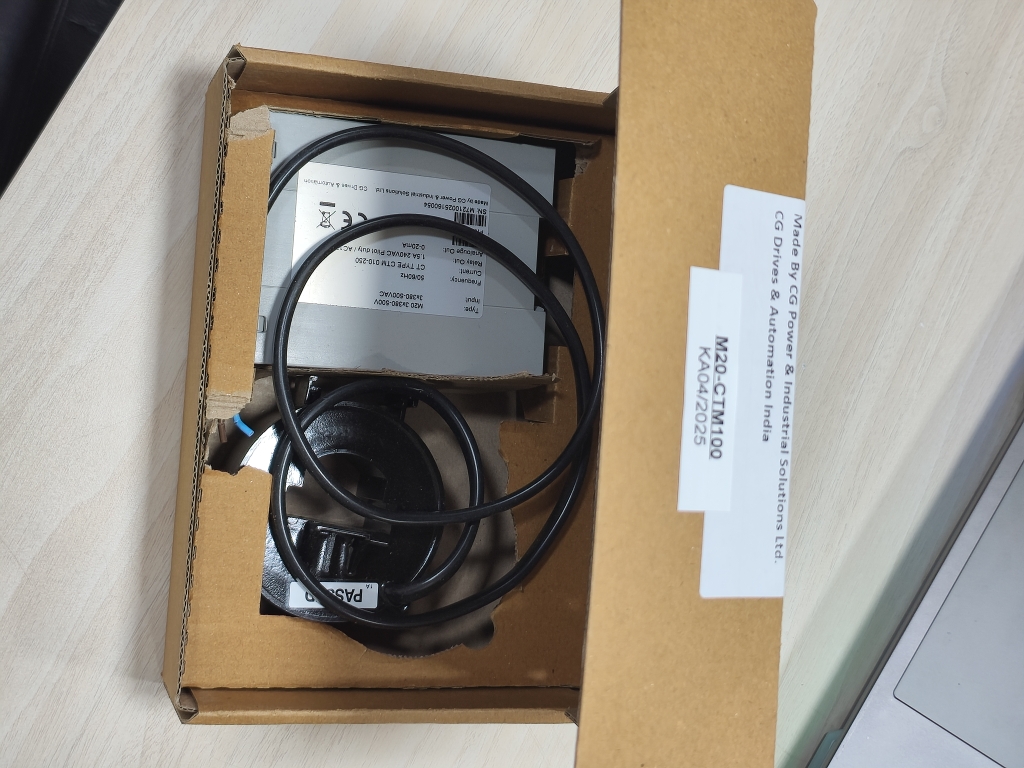

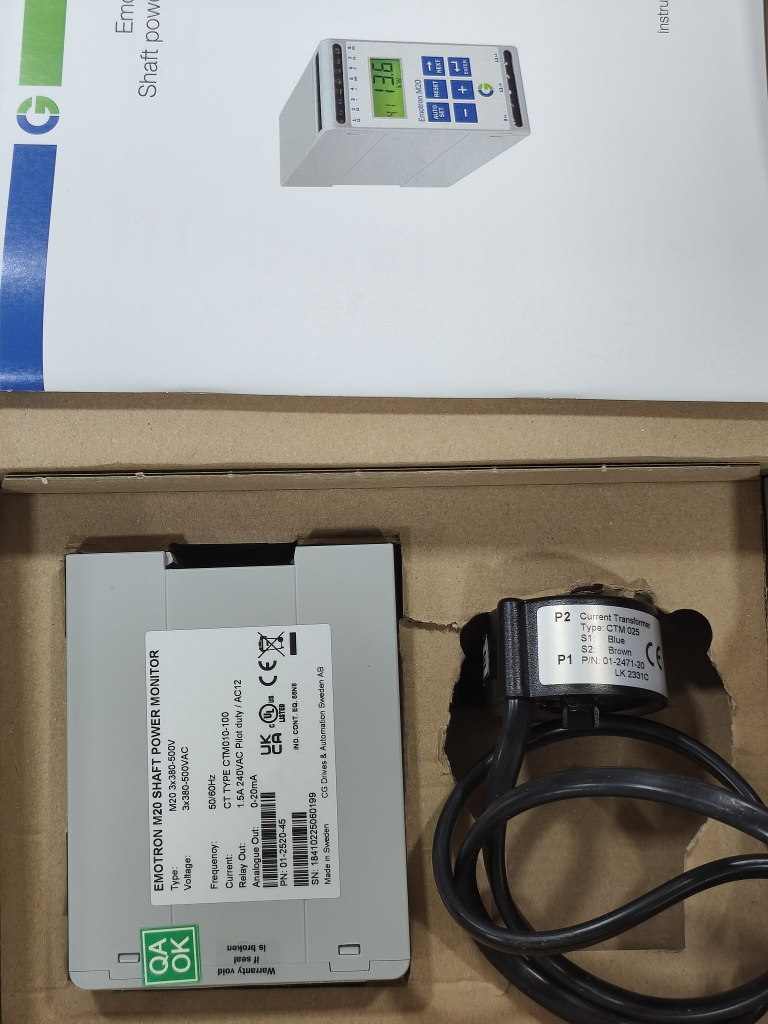

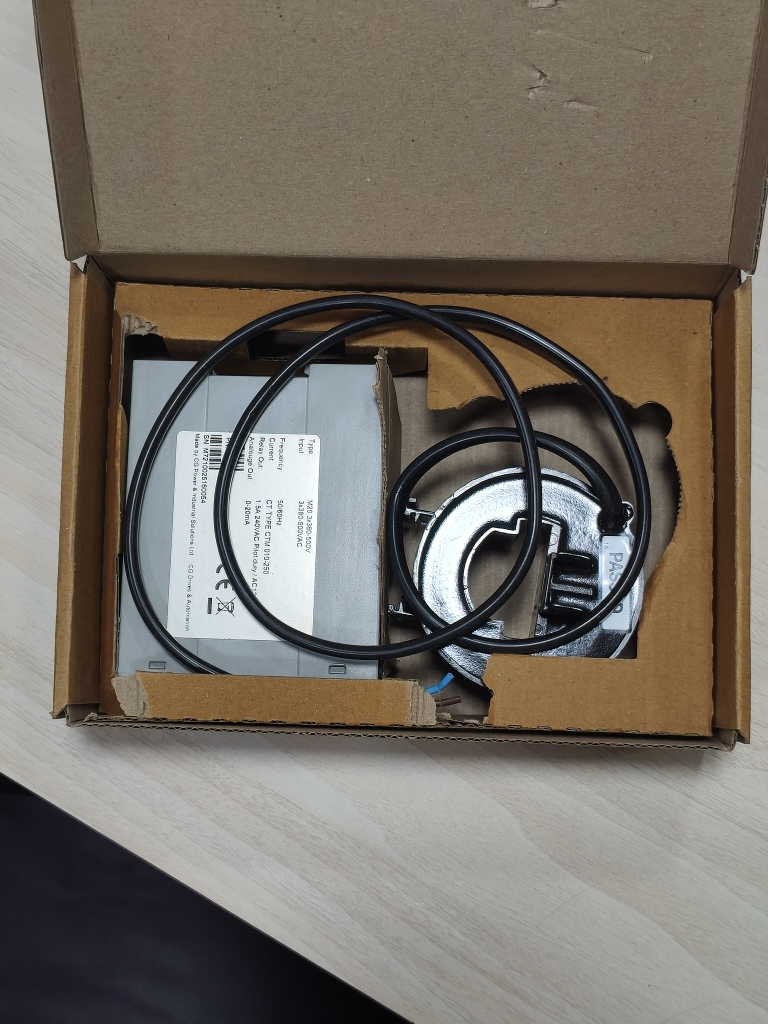

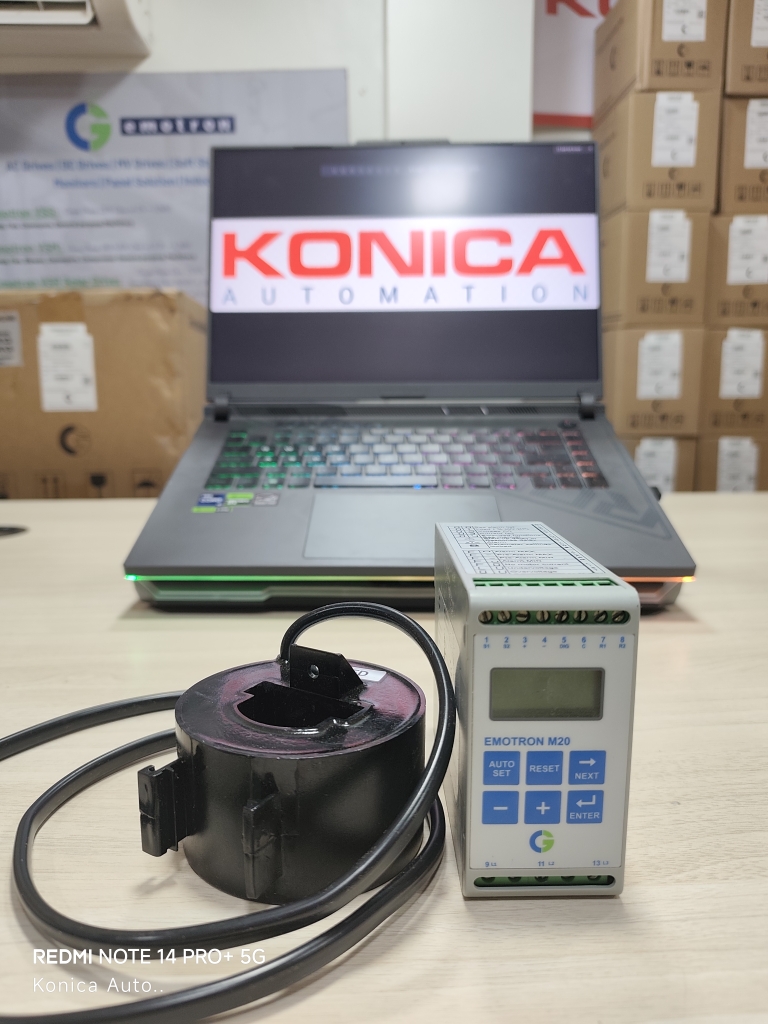

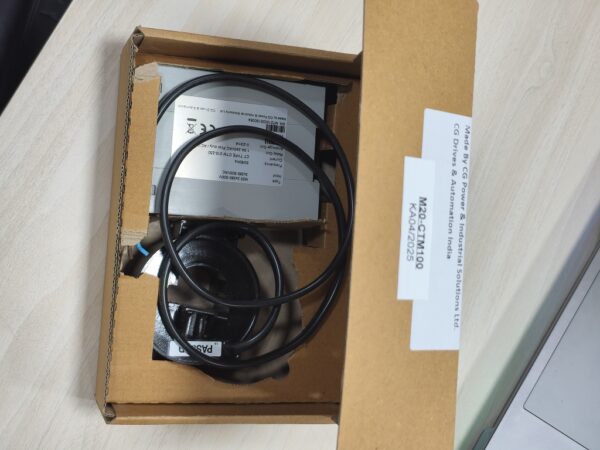

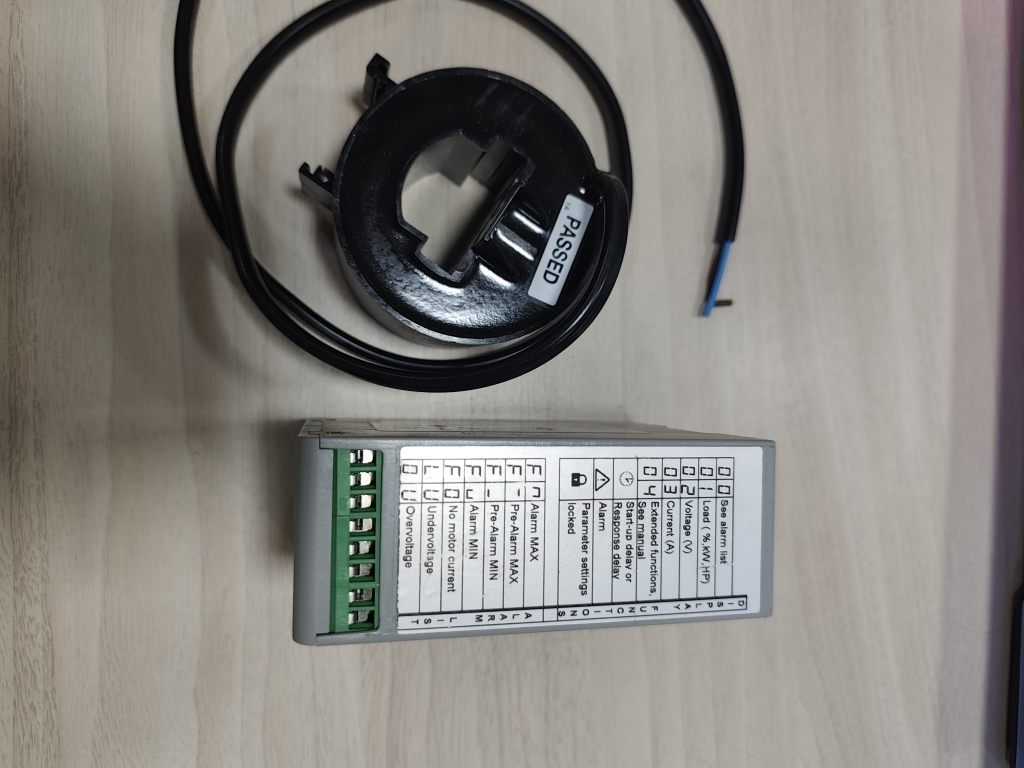

CG Emotron M20 Shaft Power Monitor with CTM100 ⚙️🔋 | Motor Load Monitoring up to 100A for Industrial Equipment

The CG Emotron M20 Shaft Power Monitor with CTM100 is an intelligent, sensorless protection device designed to prevent damage to your machinery by monitoring the shaft power output of electric motors in real time. 📊🧠 With the CTM100, it handles motor loads up to 100 Amps, making it perfect for larger industrial systems in pumps, crushers, mixers, blowers, and conveyors. 🌀📦

By measuring actual input power and phase angle, it provides highly accurate load data, triggering alarms or shutdowns before a failure occurs. The M20 uses the motor as its own sensor, cutting down on installation time, cabling, and external sensors. 💡🧰

🔧 Key Features:

✅ Real-time shaft power measurement for precision monitoring
🧠 Auto-Set: Automatically sets 4 protection thresholds in under 3 seconds
📈 Analog output (4–20 mA or 0–20 mA) for PLC and SCADA integration
🔌 2 configurable relay outputs for alarm and trip
📊 LED display for clear load and status visibility
🛠️ Compact DIN rail mounting – quick and easy installation

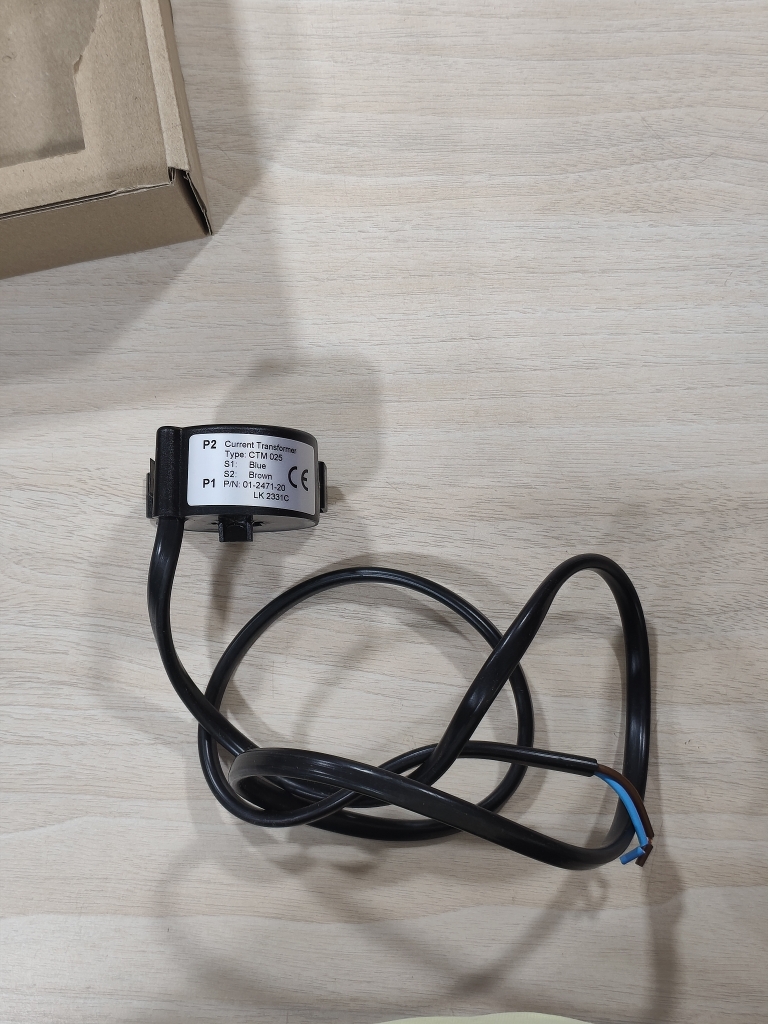

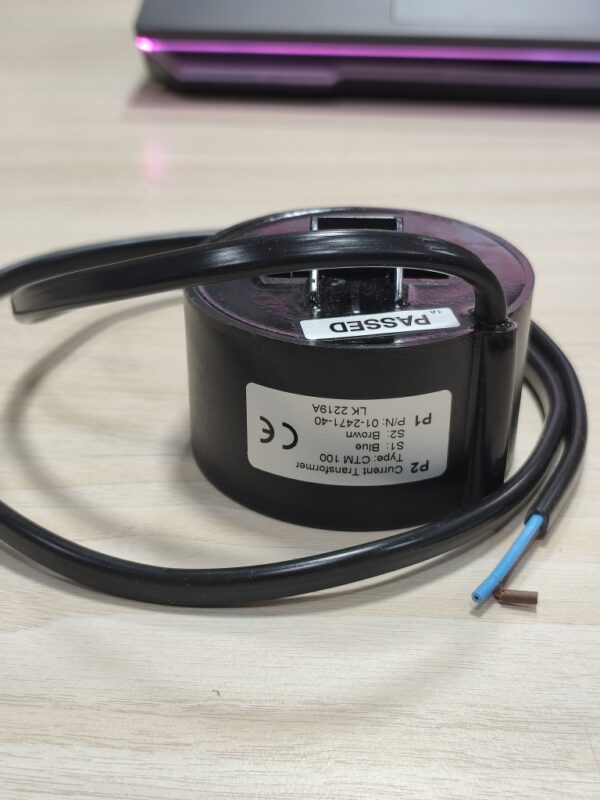

🔧 Supports motor loads up to 100A with CTM100

📦 Technical Specifications:

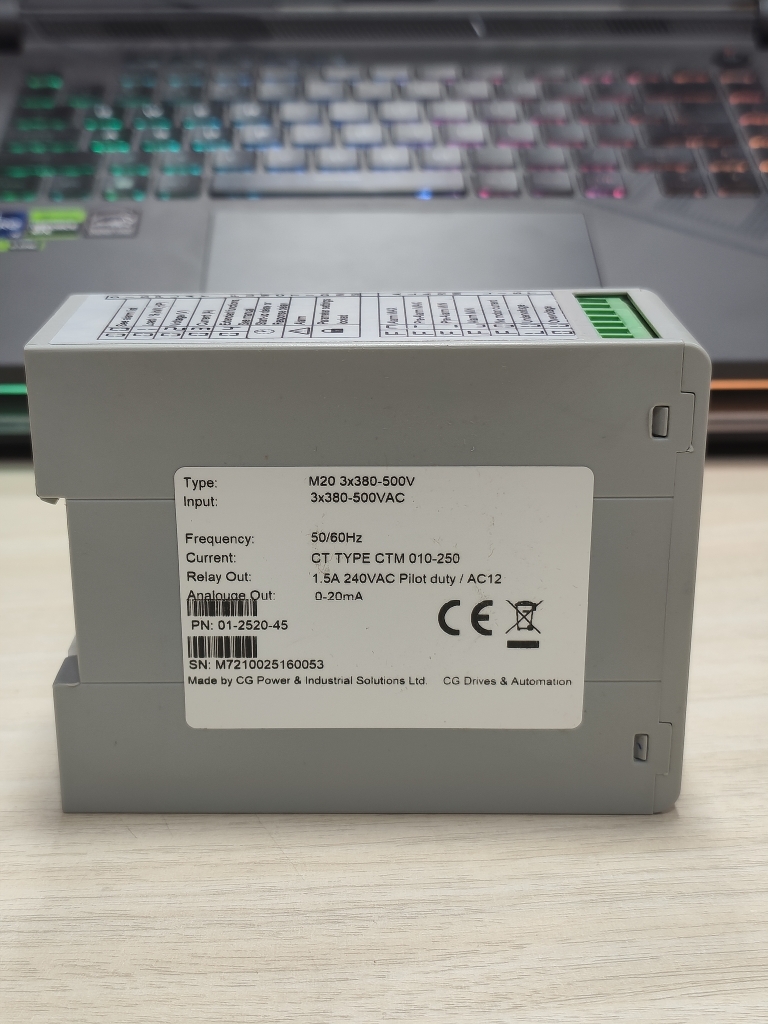

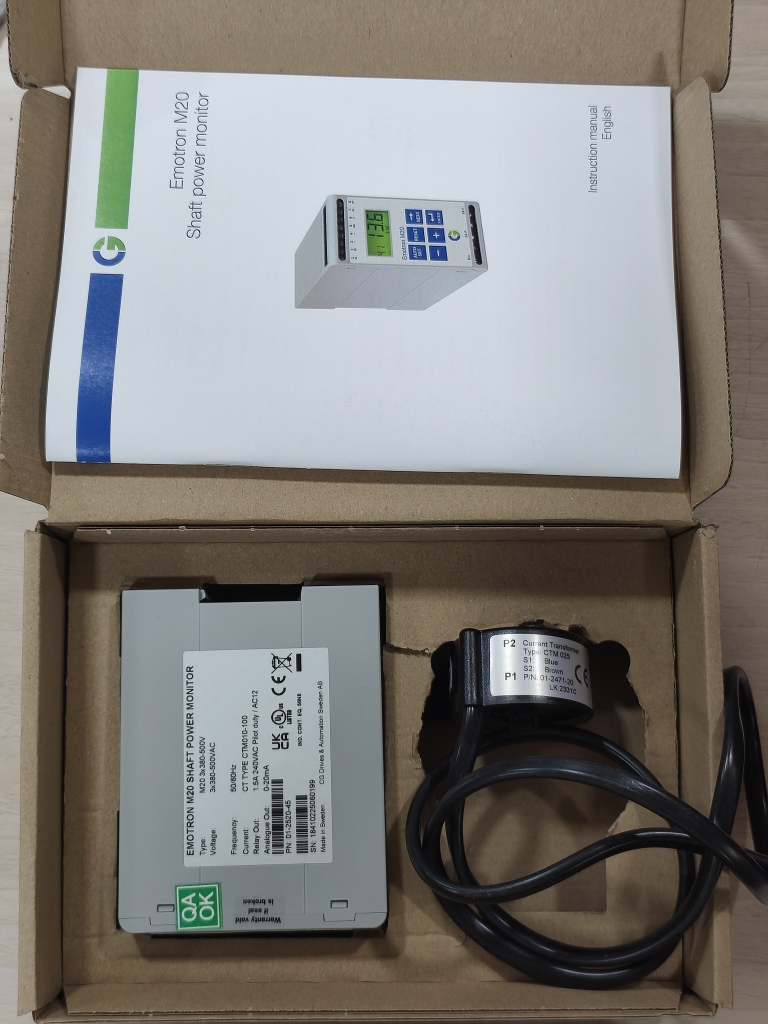

• Model: Emotron M20 with CTM100

• Current Range: 0–100 A

• Supply Voltage:

  • Single-phase: 100–240 VAC

  • Three-phase: 100–240 / 380–500 / 525–690 VAC

• Frequency: 50 / 60 Hz

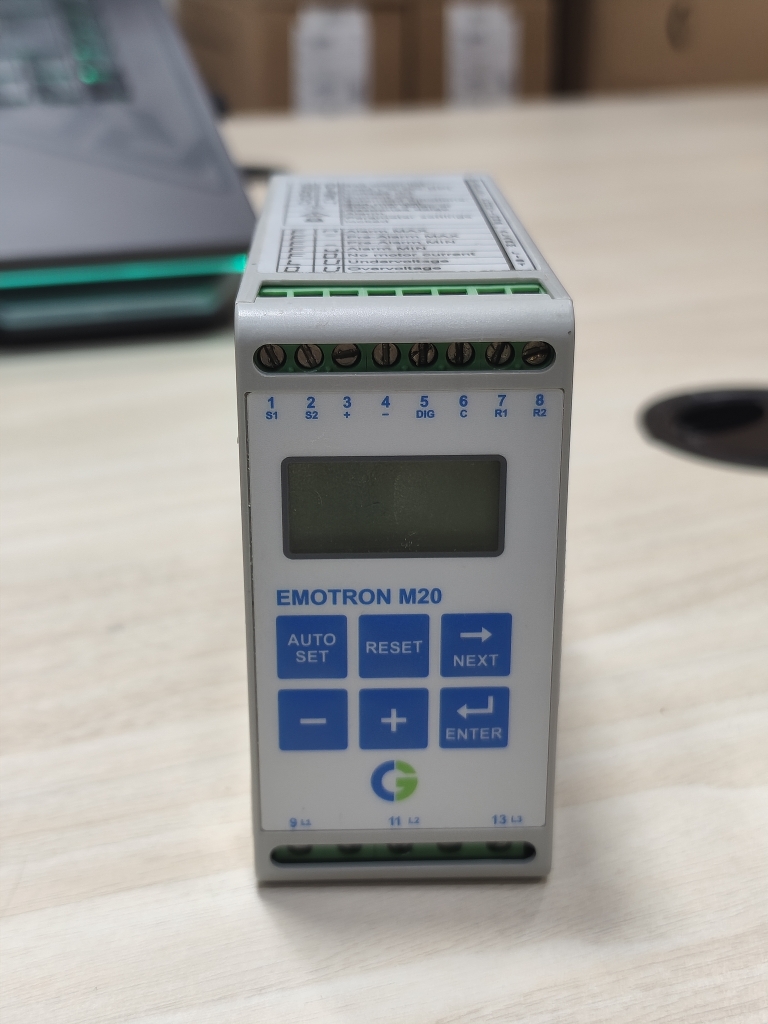

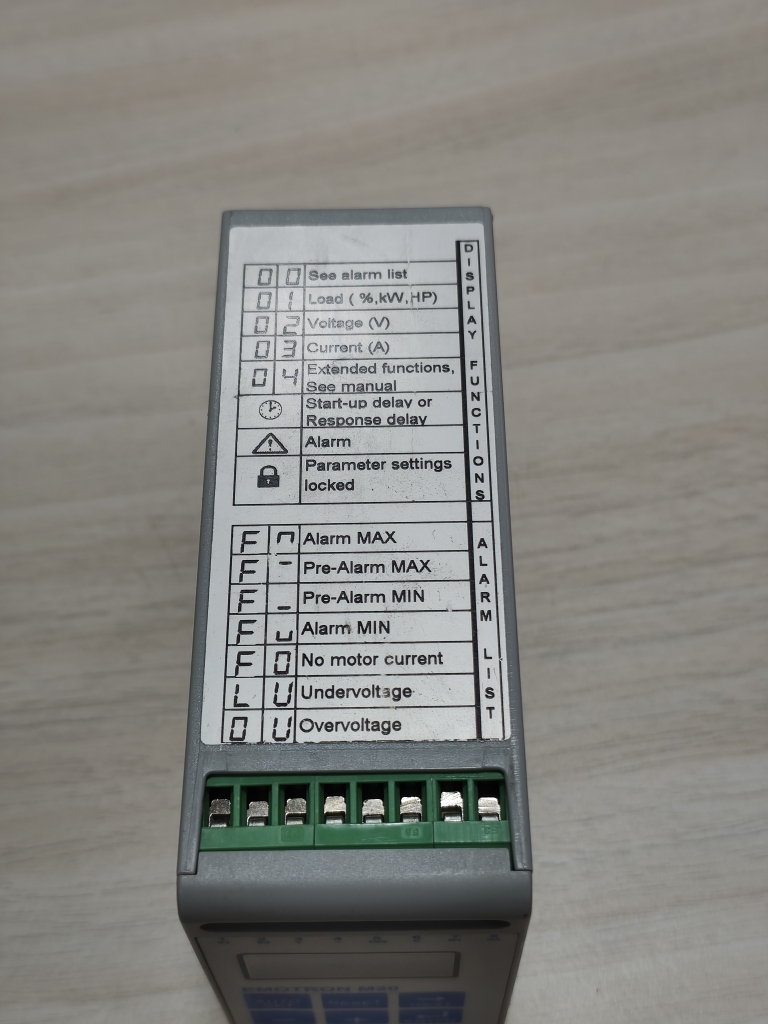

• Display: LED (kW / HP / % Load)

• Analog Output: 0–20 mA / 4–20 mA (scalable)

• Relay Outputs: 2 (user-programmable)

• Protection Class: IP20

• Mounting: DIN rail (35 mm)

• Certifications: CE, UL, cUL

🚀 Application Areas:

💧 Pumps – Detect dry-run, impeller failure, or cavitation
📦 Conveyors – Monitor for jam, overload, or no-load
🌀 Mixers – Track blade faults or product viscosity changes
🔩 Crushers & Blowers – Detect inconsistent or excessive motor load

Boost reliability, reduce downtime, and eliminate unplanned maintenance with the CG Emotron M20 + CTM100 — the ideal motor load protection system for demanding industrial environments. ⚡🏭
