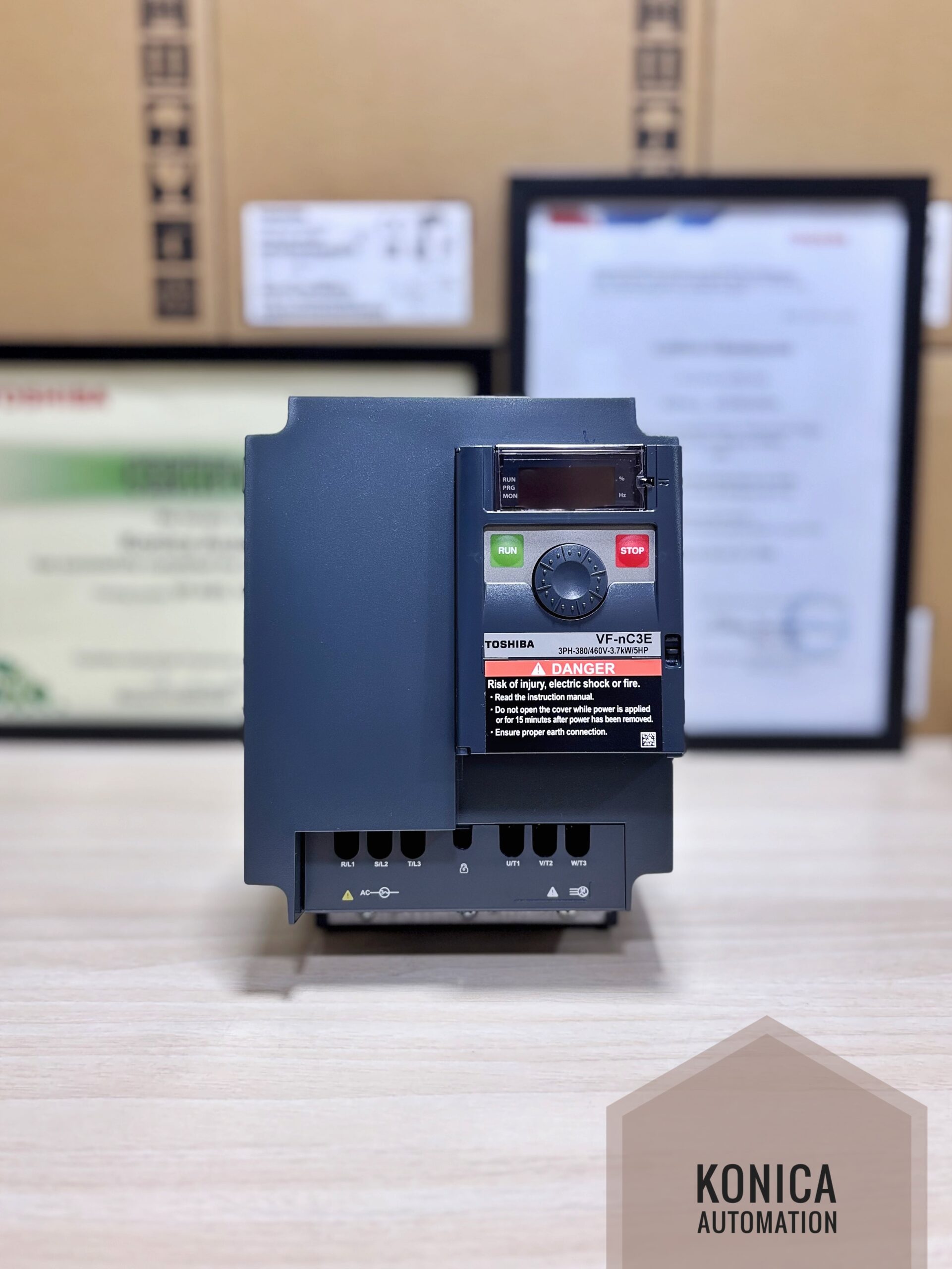

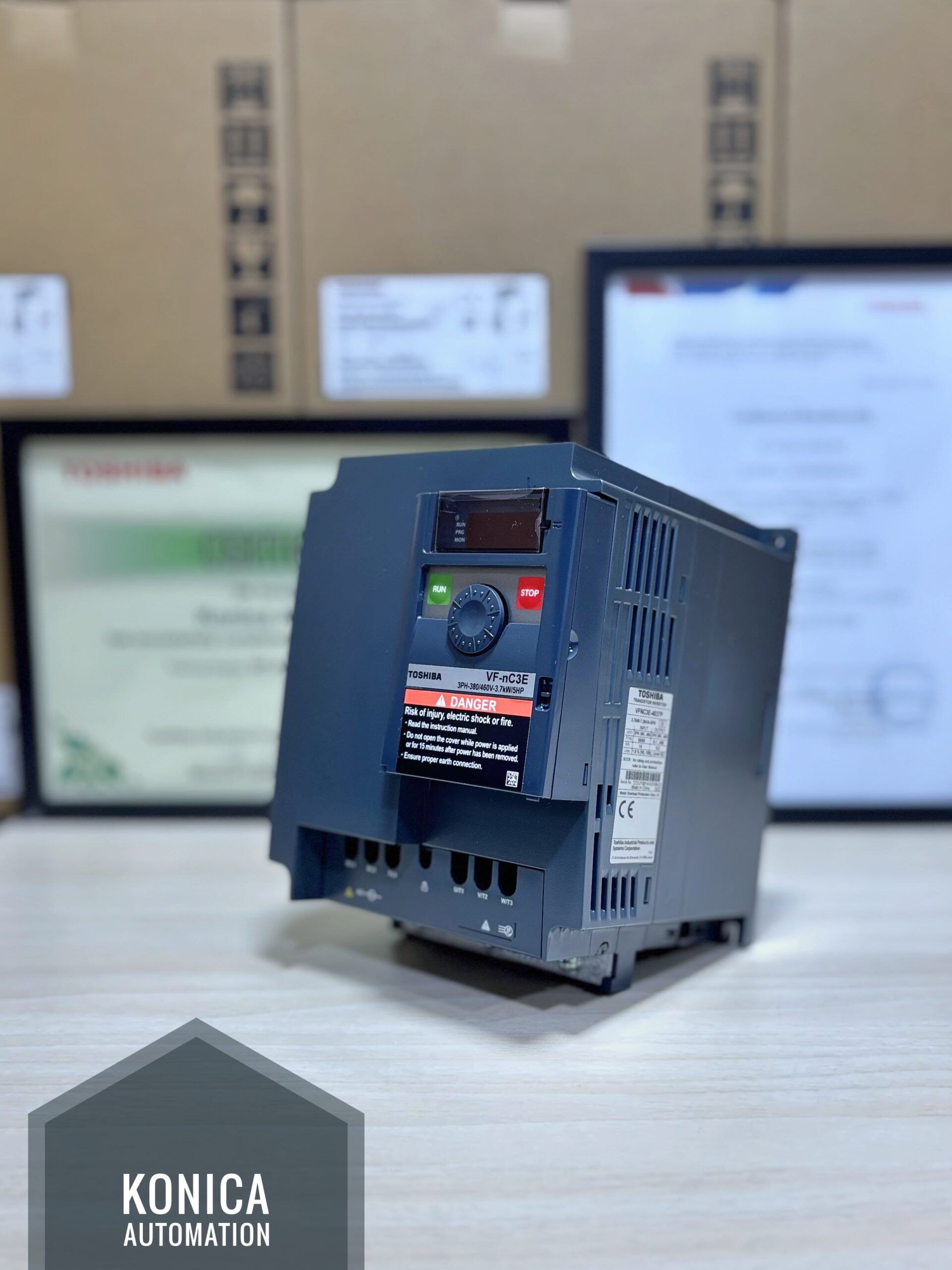

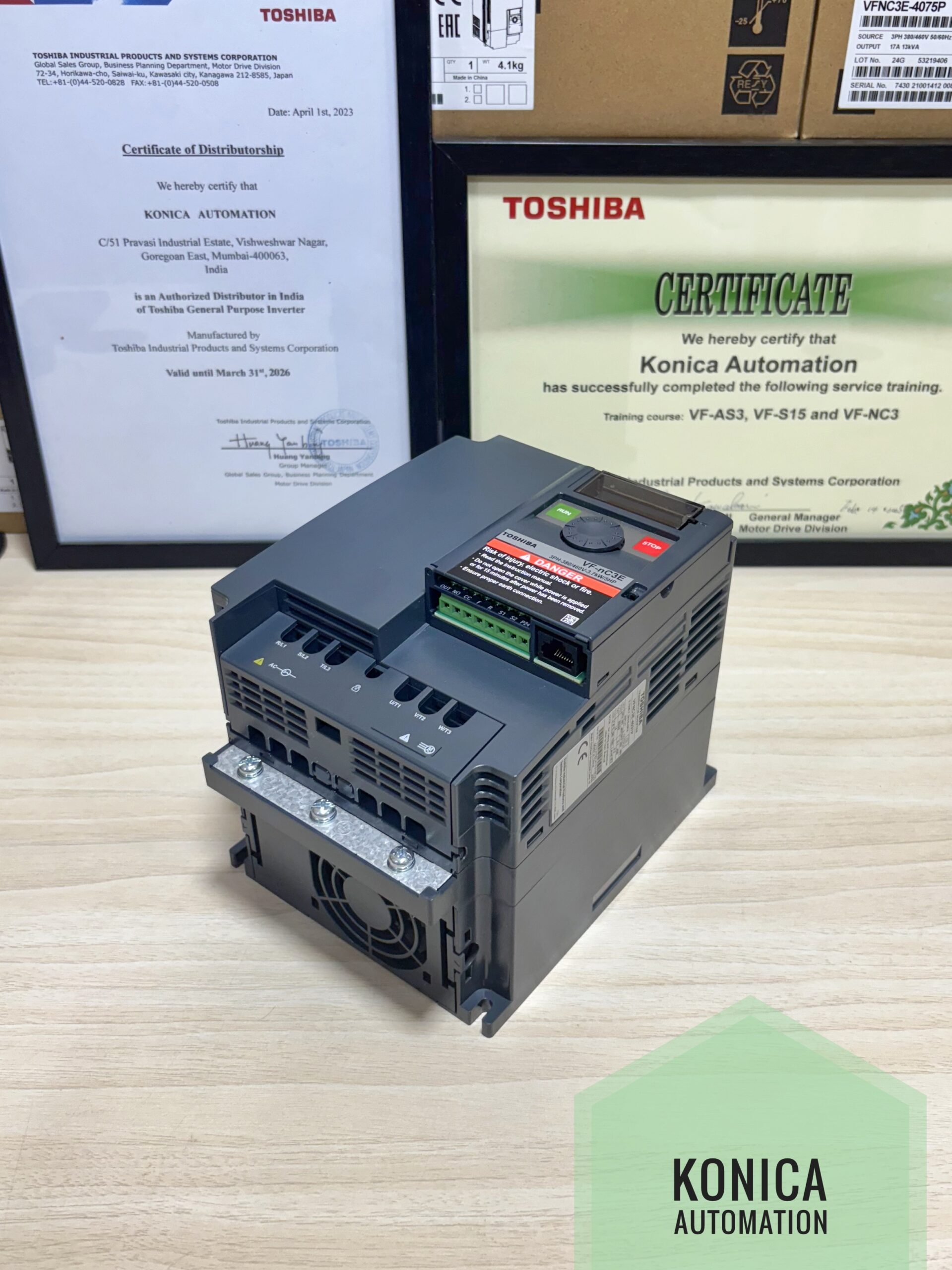

🔧 Toshiba VFNC3E-4055P – 7.5 HP Industrial Variable Frequency Drive 🔧
The Toshiba VFNC3E-4055P is a 7.5 HP / 5.5 kW Variable Frequency Drive (VFD) from the high-efficiency TOSVERT VF-nC3E Series. Built for general-purpose industrial applications, this compact 3-phase AC drive offers excellent control, energy savings, and long-term reliability. Whether you’re powering pumps, fans, conveyors, or compressors — this IP20-rated drive handles it all with ease. ⚙️🌍
📊 Product Specifications:
✅ Brand: Toshiba
✅ Series: VF-nC3E
✅ Model: VFNC3E-4055P
✅ Horse Power: 7.5 HP / 5.5 kW (Heavy Duty)
✅ Output Current: 12.6 Amps
✅ Phase Rating: 3 Phase Input / 3 Phase Output
✅ Enclosure: IP20
✅ Type of Drive: General Purpose
✅ Weight: 3.5 kg
✅ Warranty: 1 Year
💡 Key Features & Benefits:
✔️ Simple Operation & Configuration
🎛️ Front Dial with Push Control – Intuitive parameter setting
🟢 RUN / STOP Buttons – Easy local control at your fingertips
🔁 EASY Mode Key – Access up to 24 frequent settings quickly
🔄 Switch between Easy and Standard Modes for full control
✔️ Space-Saving & Safe Installation
🧱 Side-by-Side Mounting – Space-efficient layout for panels
🔒 Removable Main Circuit Cover – Enhanced wiring safety
✔️ High Durability & Long Life
⏳ Component Life: Up to 10 years
🌡️ Operates from -10°C to 60°C
🛡️ PCB Coating for dust protection
🧊 Advanced cooling design for continuous operation
🌄 Maximum usable altitude: 3,000 meters
🏭 Common Applications:
Designed for flexibility, the VFNC3E-4055P VFD suits multiple industries:
💧 Pumps & Compressors
🌬️ Industrial Fans & HVAC
🏗️ Cranes, Hoists & Elevators
📦 Conveyor Belts & Packing Machines
🧃 Food & Beverage Processing
🚘 Car Wash Equipment
⚙️ Mixers, Centrifuges, and more
🌐 Compliance & Certifications:
✅ Global Standards: CE Marking, UL Listed, CSA Certified
✅ Overload Capacity: 150% for 60s, 200% for 0.5s
🌐 Trusted globally across Oil & Gas, Mining, Textile, Water, and more
