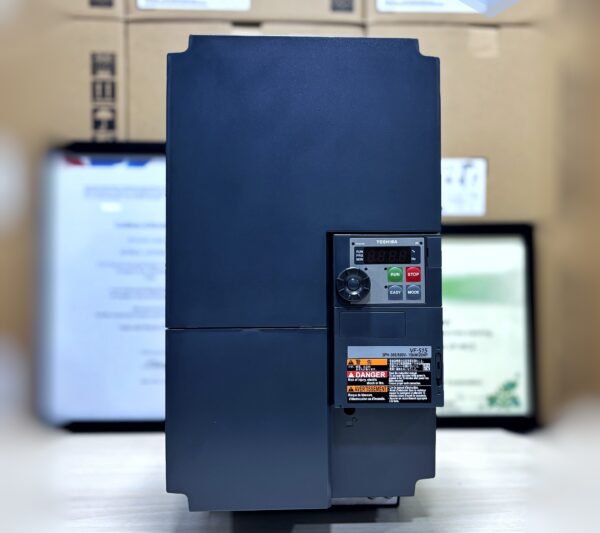

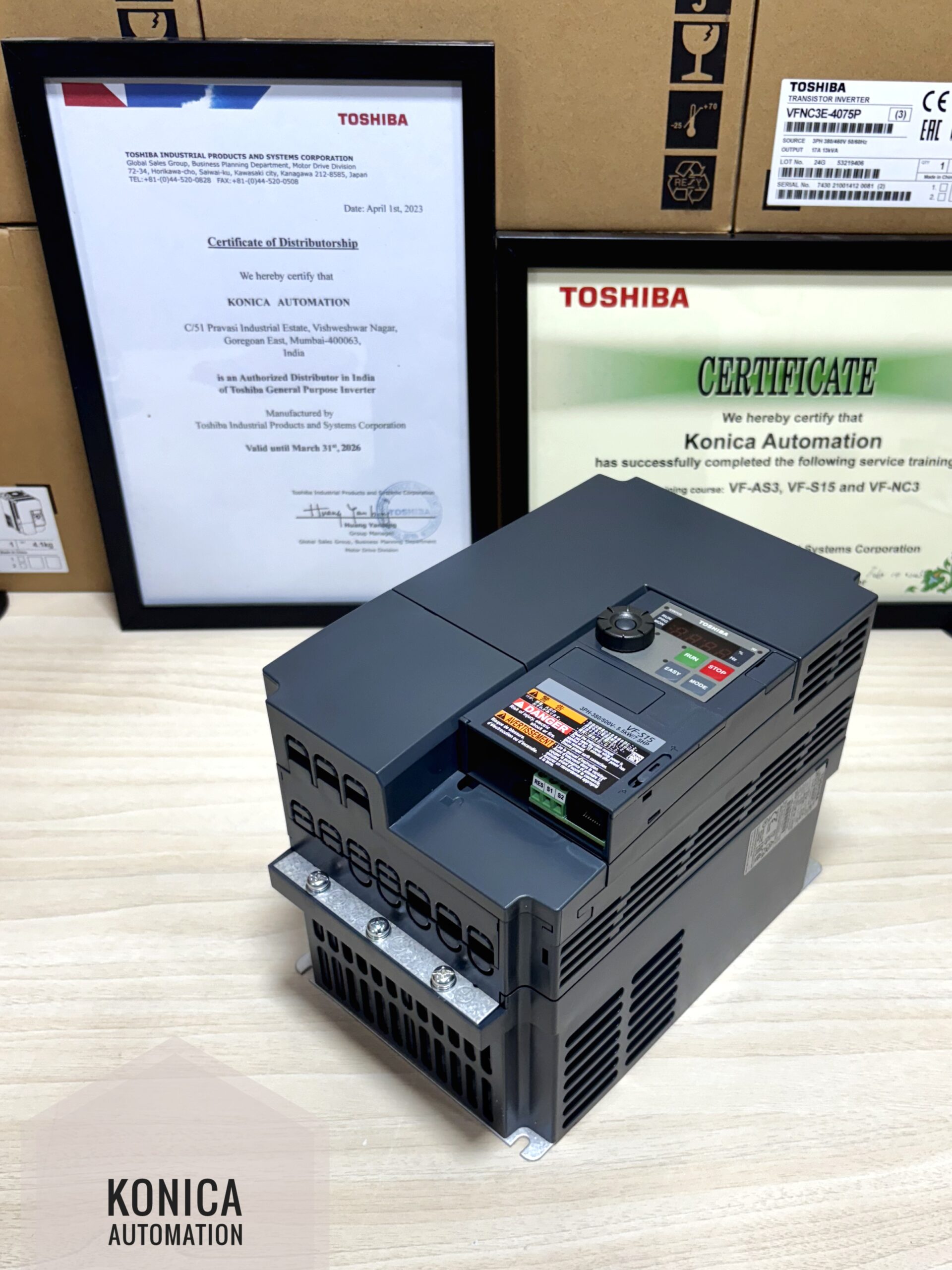

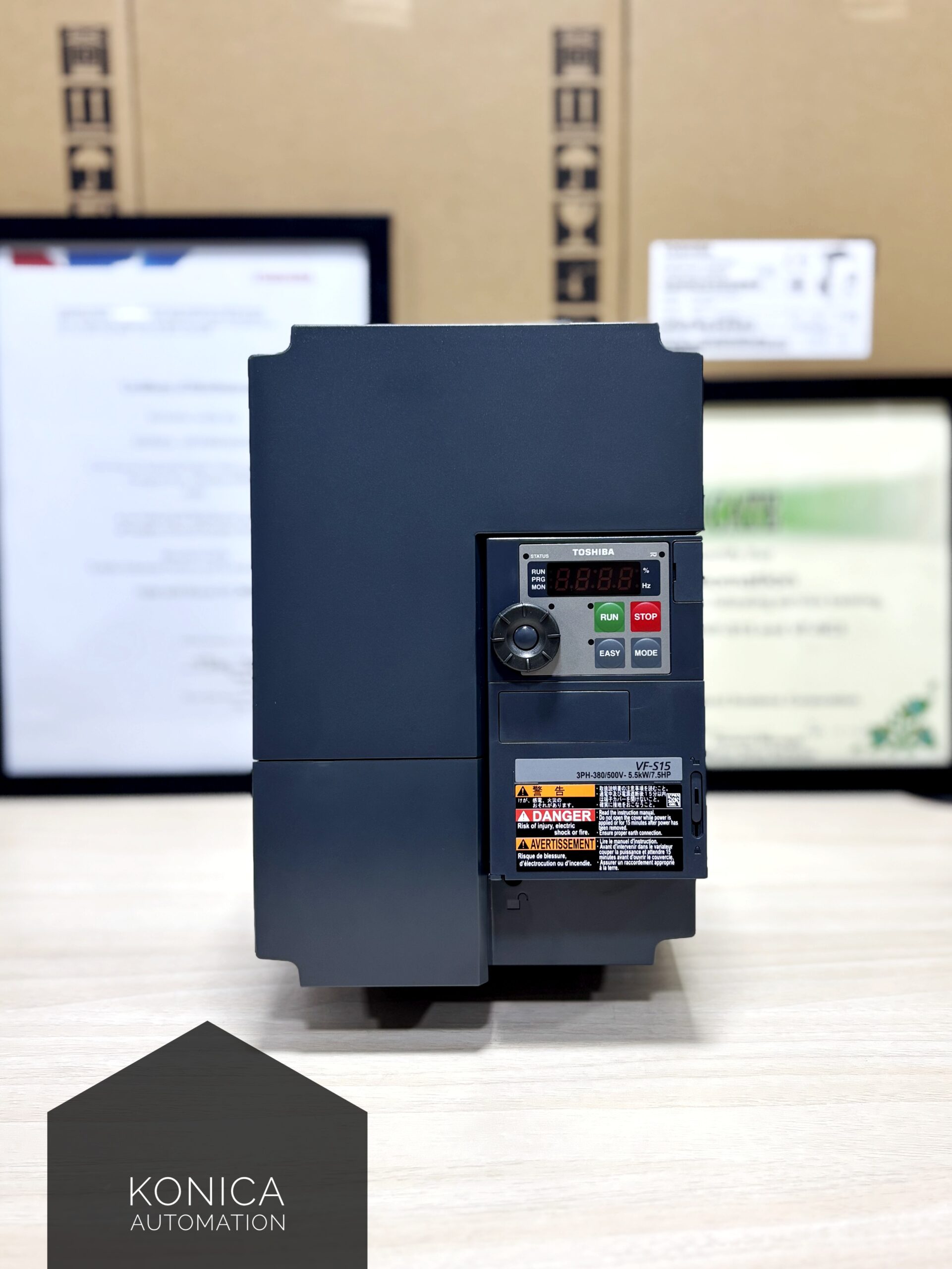

Toshiba VFS15-4055PL-W1–7.5 HP / 5.5 kW Variable Frequency Drive

🔧 Toshiba VFS15-4055PL-W1 – 7.5 HP / 5.5 kW Variable Frequency Drive (VFD)

The Toshiba VFS15-4055PL-W1 is a 7.5 HP (5.5 kW) heavy-duty Variable Frequency Drive (VFD) from the cutting-edge VF-S15 series, ideal for a wide range of industrial and commercial automation applications. Built for energy savings, robust safety, and reliable performance, it offers precise motor control in compact form.

📐 Technical Specifications:

• ✅ Brand: Toshiba

• ✅ Series: VF-S15

• ✅ Model: VFS15-4055PL-W1

• ✅ Power Rating: 7.5 HP / 5.5 kW (Heavy Duty)

• ✅ Output Current: 13 Amps

• ✅ Input/Output Phase: 3 Phase Input, 3 Phase Output

• ✅ Voltage Range: 3 Phase 500V (0.4 to 15kW supported)

• ✅ Enclosure: IP20

• ✅ Type: General Purpose Drive

• ✅ Warranty: 1 Year

• ✅ Weight: 4 kg

💡 Key Features:

✅ High-Performance Compact Design

• Perfect for pumps, conveyors, compressors, and elevators

• Supports both variable and constant torque loads

🛡️ Advanced Safety Functions

• Emergency protection with output insulation

• Reduced wiring and simplified system integration

⚡ PM Motor Drive Support

• Drives SPM and IPM motors for superior energy efficiency

♻️ Energy Savings

• Optimized for fans and pumps with energy-reduction algorithms

🛠️ User-Friendly Installation

• One-push wire protection cover

• Lockable I/O terminal door for safety

🔁 Dual Torque Operation

• Handles high starting torque and variable load conditions with vector control

📊 Parameter Management & Storage

• Store up to 32 parameter presets

• Optional parameter writer for power-free configuration

🕹️ Setup Dial

• Enables intuitive parameter writing and live monitoring

🔌 Communication Options (via optional cards):

• EtherNet/IP™, Modbus TCP

• EtherCAT®, PROFIBUS-DP

• CANopen®, DeviceNet™, CC-Link

🏭 Industrial Applications:

• 🚠 Elevators, Hoists, Cranes

• 🌬️ Fans, Blowers, Compressors

• 🧺 Textile Equipment – Sewing, Dyeing, Weaving

• 🧰 Machine Tools, Cutters, Welders, Grinders

• 📦 Conveyors, Packing & Wrapping Machines

• 🛁 Car Washes, Massage Machines, X-ray Equipment

• 🪵 Woodworking Machines, Binding Machines

• 💡 Semiconductor & Automation Machinery
