🔹 Product Overview

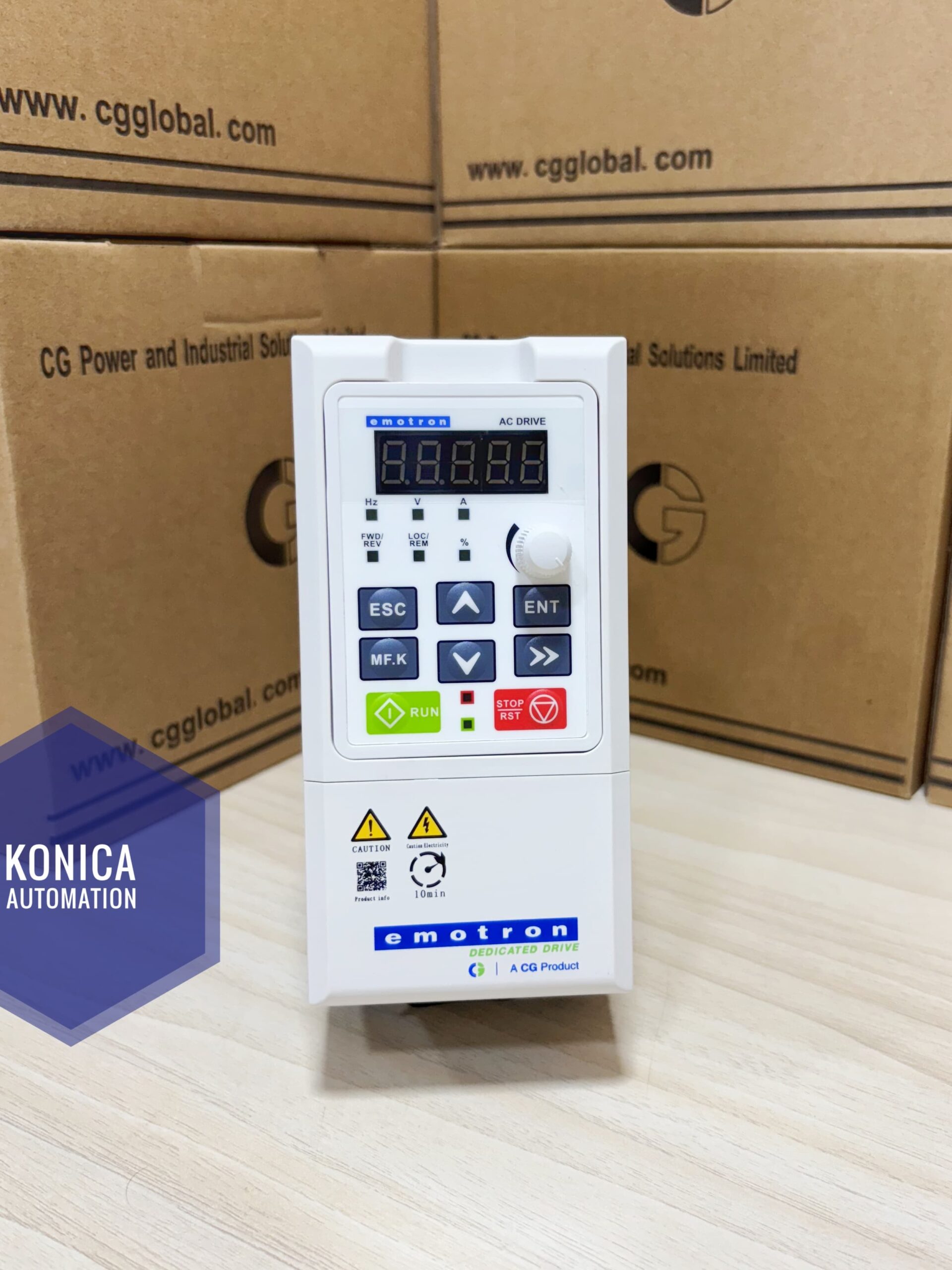

The CG Emotron VSM48-006-20CEB is a high-performance Variable Frequency Drive (VFD) engineered for precision motor control in a wide range of industrial applications. Rated at 2.2kW (3HP) and 5.5A, this compact yet rugged drive offers support for both Induction Motors and Permanent Magnet Motors with robust overload capacity and advanced features.
Perfectly suited for pumps, blowers, fans, conveyors, cranes, and more, the VSM series ensures superior reliability, space-saving design, and seamless integration into any automation system.
🔧 Key Features
Compact & optimized design for flexible installation
Standard LED display for real-time system monitoring
Supports both Induction and PM motors
Heavy-duty performance with enhanced protection
Built-in brake chopper for controlled deceleration
High-speed pulse input for feedback precision
200% overload capacity for 1 second
Integrated PLC functions, logic gates, timers, and comparators
C3 class EMC filter ensures clean electrical operation
✅ User Benefits
High startup torque ideal for load-heavy operations
Independent air duct design ensures better cooling & lifespan
Built for hot and humid industrial climates
Plug-and-play ready for rapid commissioning
📦 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VSM48-006-20CEB |
| Power Output | 2.2 kW / 3 HP |
| Rated Current | 5.5 Amps |
| Input Voltage | 3 Phase 380 – 480 VAC (±20%) |
| Frequency | 50 Hz |
| Weight | 1.5 kg |
| Display | Standard LED |
| Built-in Filter | C3 Class EMC |
| Certification | CE |
📊 Series Range
Power: 0.75 kW to 4.0 kW
Current: 2.5 A to 9.5 A
Voltage: 3 Phase, 380–480 VAC / 50Hz
🏭 Applications
Water Pumps
HVAC Blowers and Fans
Industrial Conveyors
Damper Control
Crane and Hoist Systems
