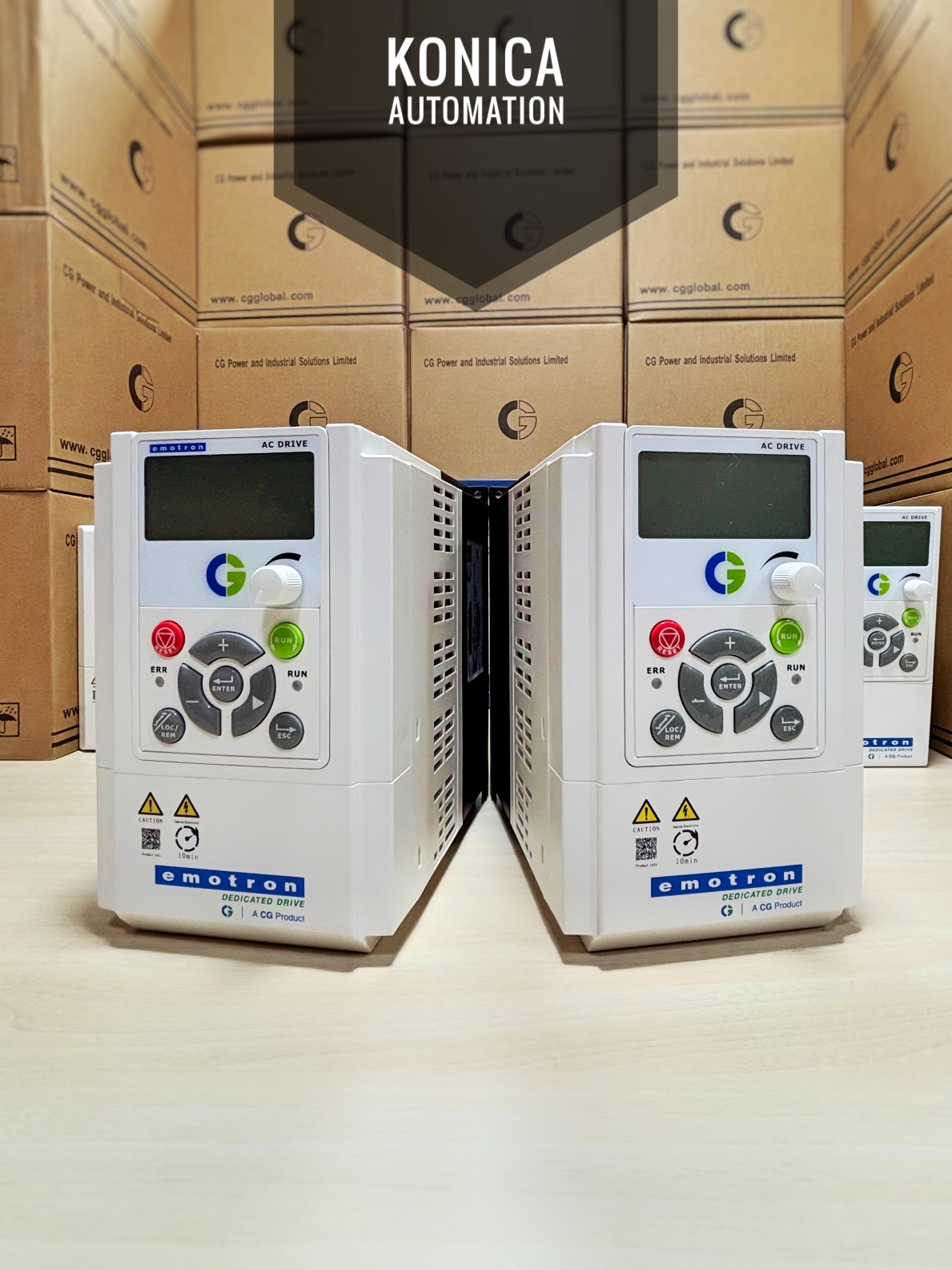

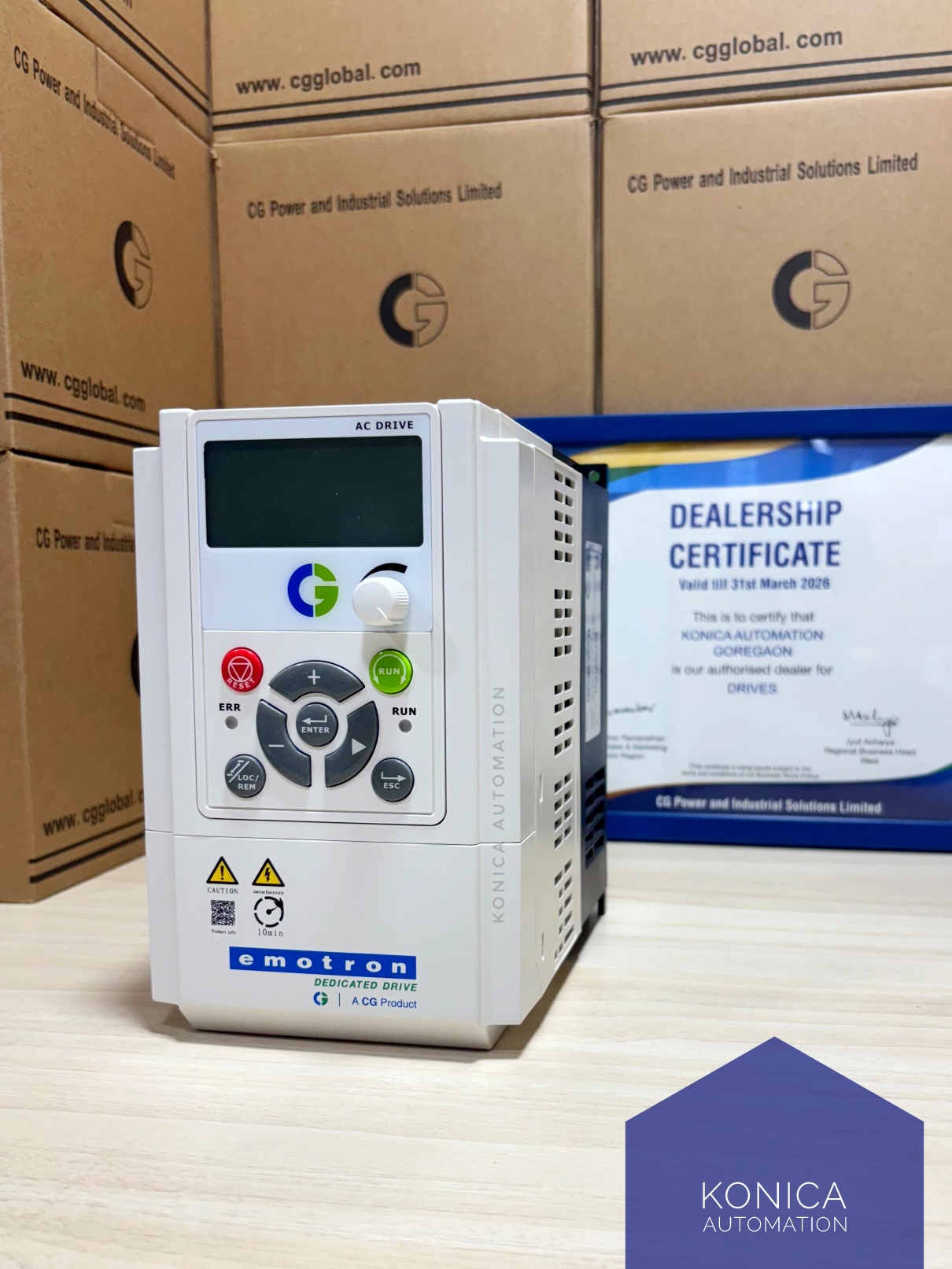

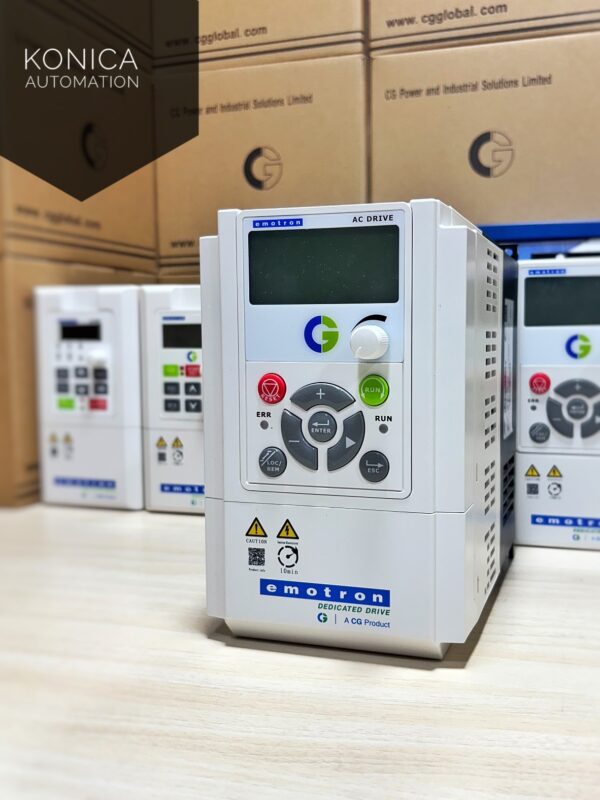

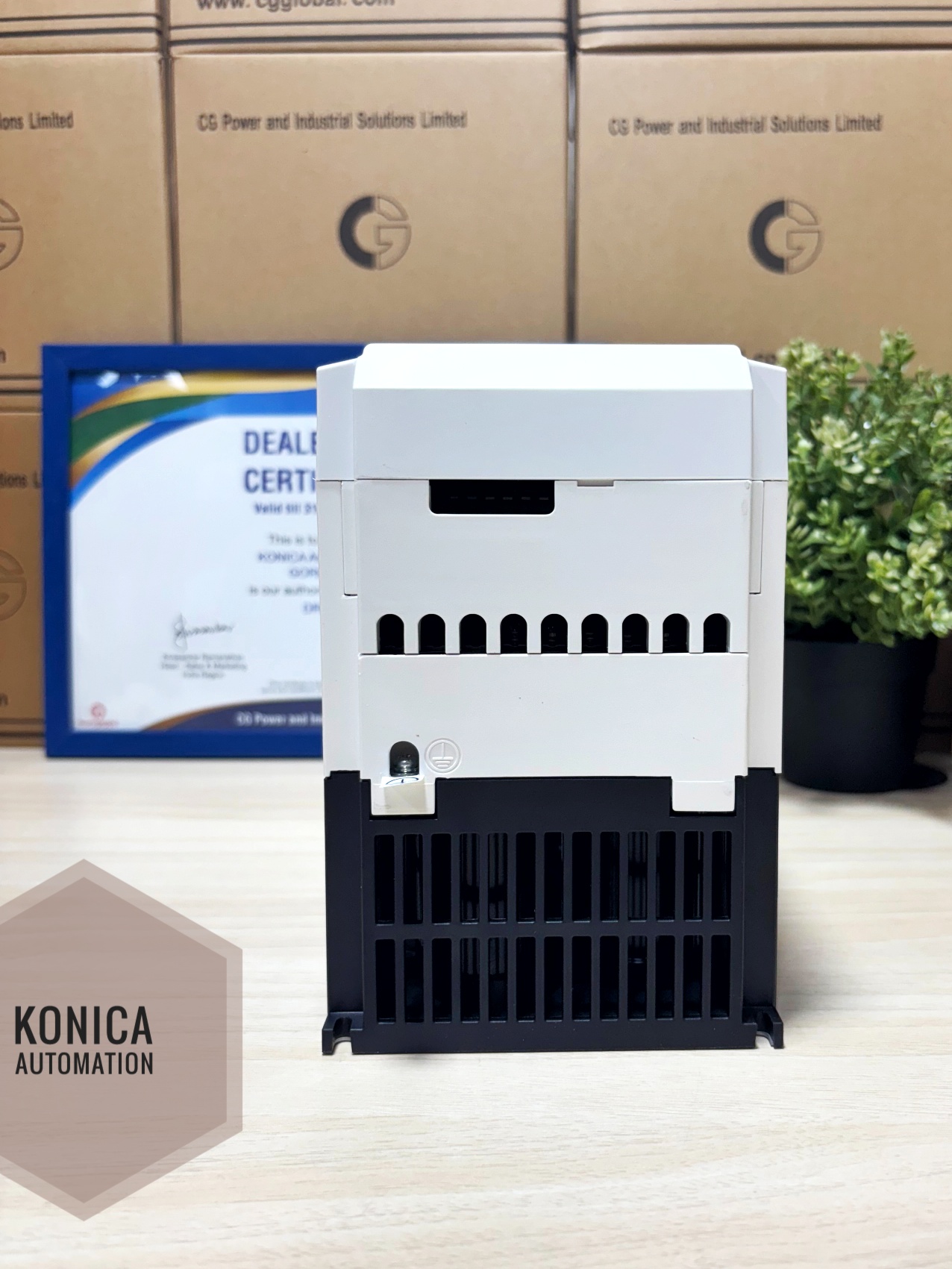

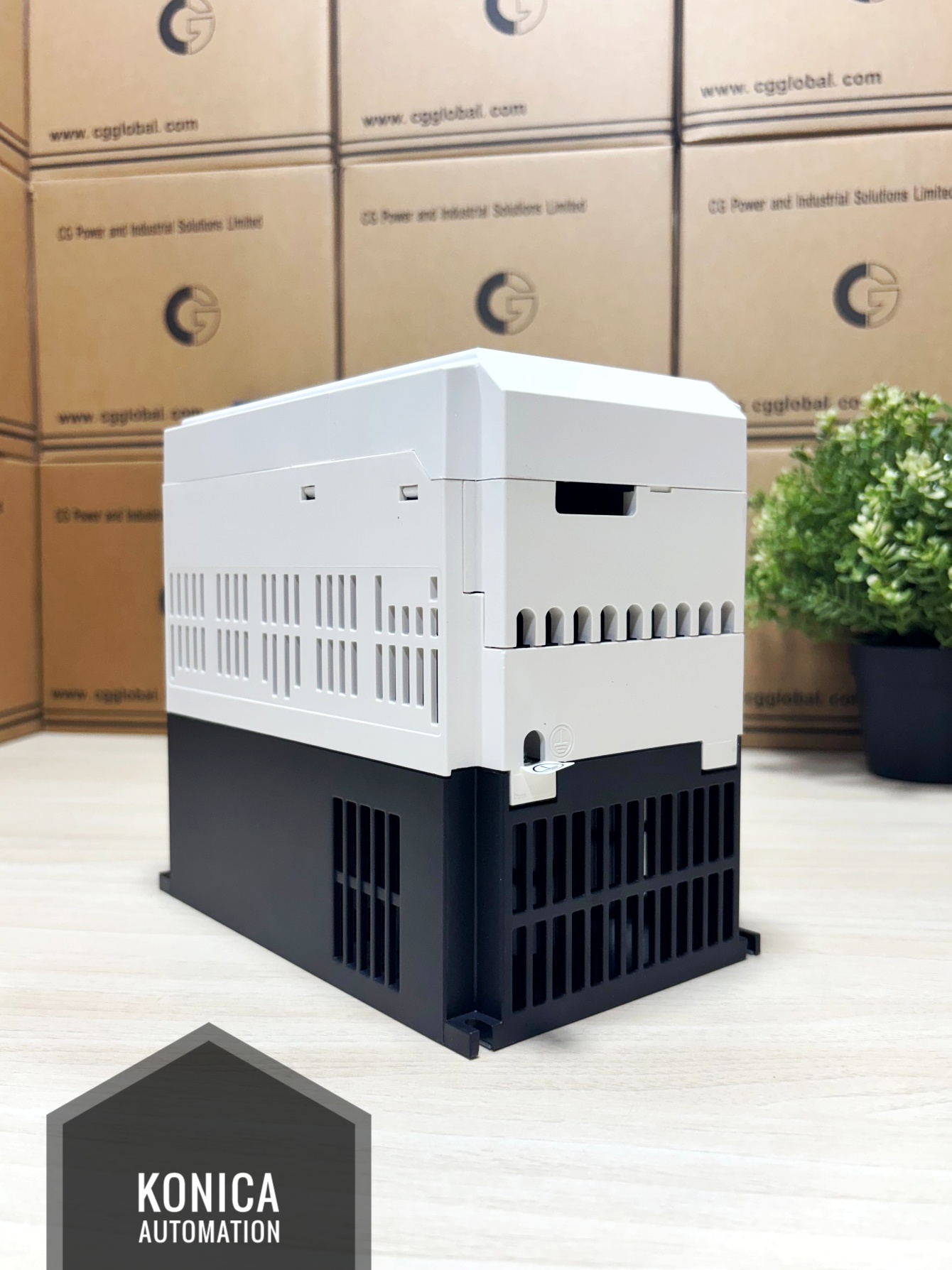

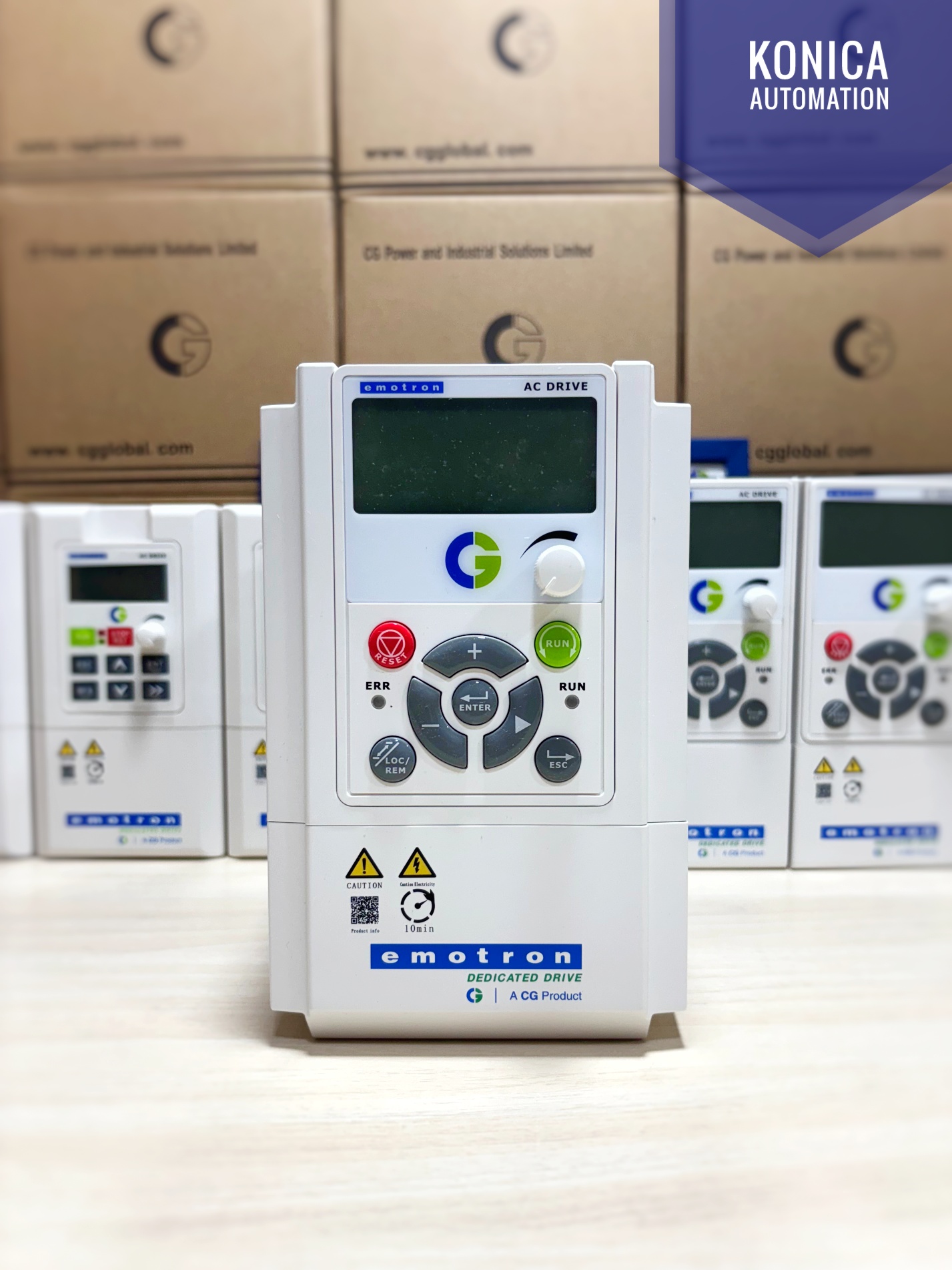

VSR48009 CG Emotron Solar Pump Drive

☀️ CG-Emotron VSR48009 Solar Pumping VFD | 3.7kW MPPT Solar Inverter

✅ Brand: CG-Emotron
✅ Series: VSR
✅ Model: VSR48009
🔋 High-Efficiency Solar Pump VFD for Remote Water Pumping Systems

The CG-Emotron VSR48009 is a compact and powerful solar pumping variable frequency drive (VFD), designed to efficiently convert solar DC power into AC output for driving motors in irrigation, borewell, and off-grid water supply systems. With advanced MPPT technology and wide voltage input compatibility, this solar VFD ensures maximum energy extraction from solar panels even under changing light conditions.

🌞 Ideal for off-grid solar water pumping in remote areas, agriculture, greenhouses, and eco-friendly projects.

⚙️ Technical Specifications:

• 🔧 Motor Power: 3.7 kW / 4 HP

• 🔋 Recommended Solar Array Power: 6 kWp

• 🔌 Max DC Input Current: 18 A

• 🔌 Output Current: 9.5 A

• 📏 Dimensions: 186.6 x 116 x 175 mm

• ⚖️ Weight: 1.5 kg

🔌 DC Input & MPPT Performance

• 🌞 Minimum DC Input Voltage: 230 VDC

• 🌞 Maximum DC Input Voltage: 800 VDC

• 🌞 Recommended Voc: 600–700 VDC

• 📈 MPPT Range: 450–600 VDC

• ⚡ MPPT Efficiency: 99%

🌟 Features & Benefits:

✅ Built-in MPPT Algorithm – Extracts max power from solar panels
✅ 200% Overload Capacity – Handles surges up to 1 sec
✅ Off-Grid Compatibility – Ideal for remote, solar-only areas
✅ Wide Input Range – Supports AC/DC input, suitable for multiple setups
✅ Durable Design – Conformal coating for dusty & humid conditions
✅ Real-Time Monitoring – LCD display with oscilloscope-style interface
✅ Smart Sleep/Wake Function – Operates intelligently with light variation
✅ Heavy Duty Operation – Rated for up to 50°C environments
✅ Multiple Protections – Overload, dry run, overvoltage, thermal, stall
✅ Modbus RS485 – Seamless integration into automation systems
✅ Supports IM and PMSM Motors – Universal motor compatibility

🌍 Ideal Applications:

🏜️ Remote Agricultural Irrigation
🚰 Village and Rural Water Supply
💧 Borewell and Groundwater Extraction
🐄 Livestock Watering Systems
🌿 Eco-Friendly Farms and Greenhouses
