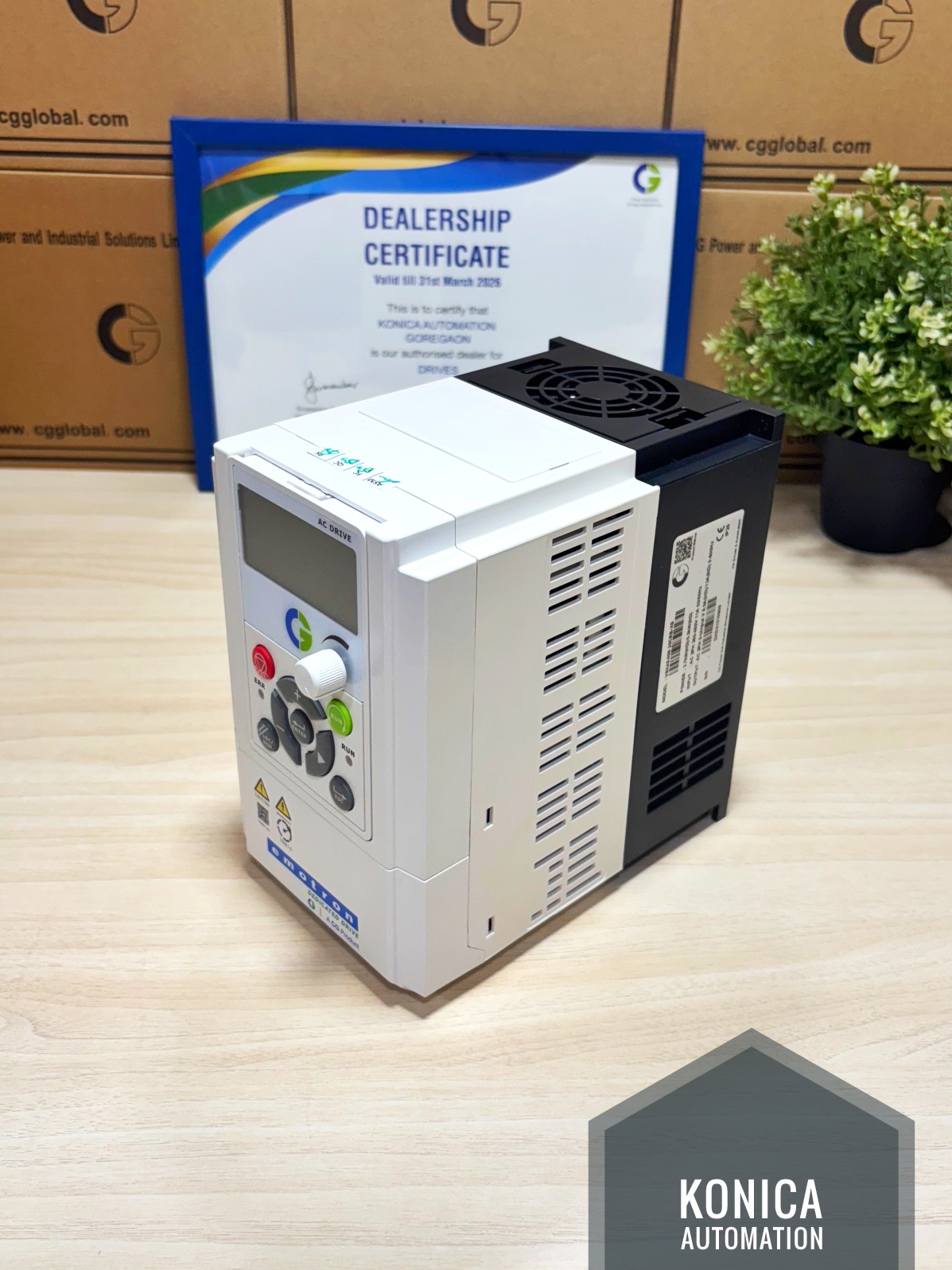

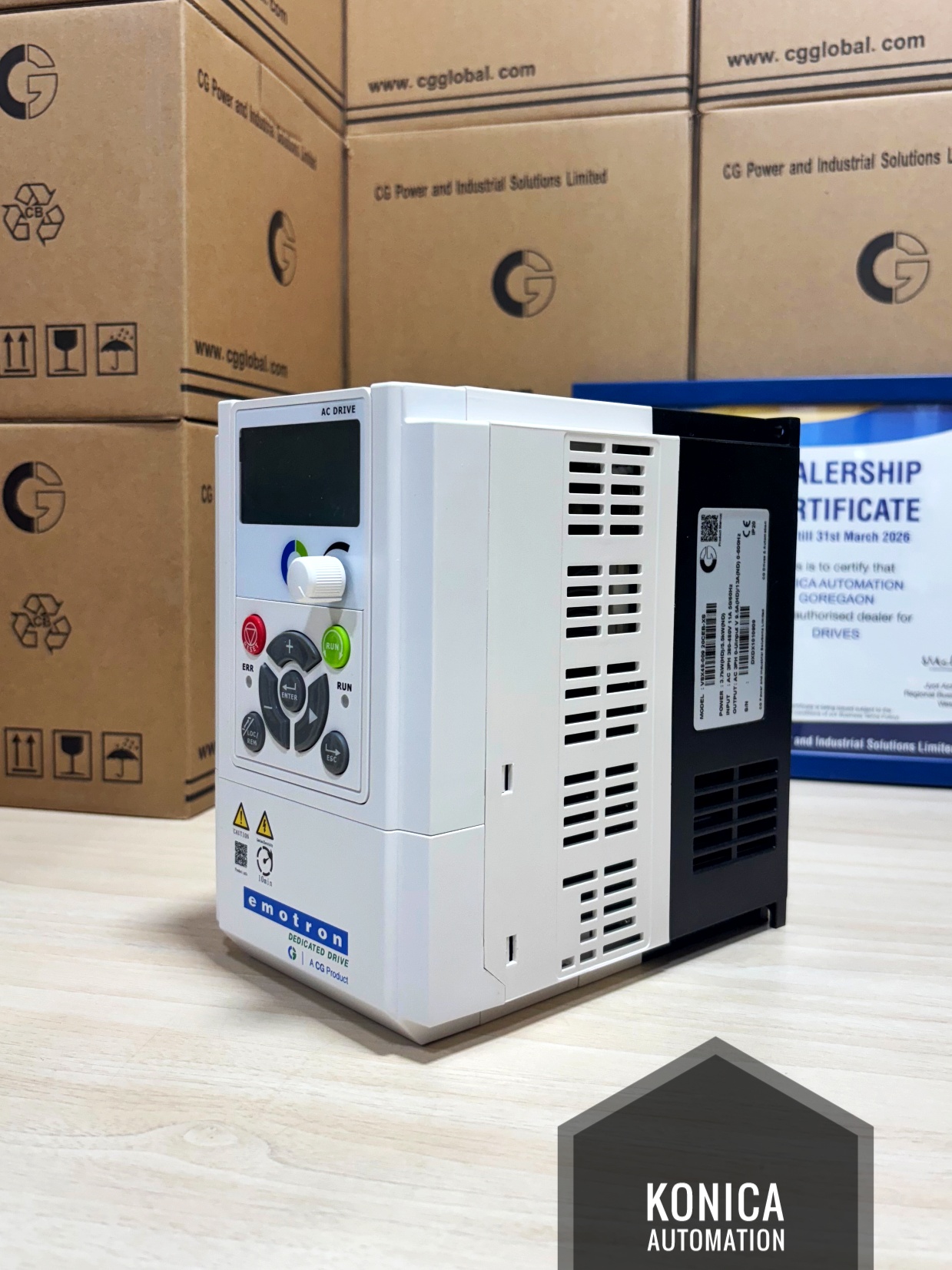

CG-Emotron VSR48013 Solar Drive VFD

☀️ CG-Emotron VSR48013 Solar Pump Inverter | 5.5kW VFD with MPPT Efficiency

✅ Brand: CG-Emotron

✅ Series: VSR

✅ Model: VSR48013

✅ Type: Solar Pumping AC Drive

✅ Power Rating: 5.5kW | MPPT Efficiency: 99%

🌞 High-Efficiency Solar VFD for Off-Grid Pumping Applications

The CG-Emotron VSR48013 is a robust solar pumping variable frequency drive (VFD) engineered for high-efficiency, off-grid solar-powered water pumping systems. It efficiently converts solar DC power into AC to run 3-phase motors, making it ideal for agriculture, borewells, irrigation, livestock watering, and rural water supply.

With built-in MPPT (Maximum Power Point Tracking) and support for wide input voltage ranges, this solar inverter ensures maximum energy output even under fluctuating sunlight. It’s built with rugged protection, smart sleep/wake functions, and seamless integration capabilities.

⚙️ Technical Specifications

• 🔧 Motor Power: 5.5 kW

• ☀️ Recommended Solar Array Power: 8.9 kWp

• 🔌 Max DC Input Current: 20 A

• 🔌 Output Current: 13 A

• 📏 Dimensions (mm): 186.6 x 116 x 175

• ⚖️ Weight: 3 kg

⚡ Input Voltage & MPPT Control

• 🌞 Minimum Input Voltage: 230 VDC

• 🌞 Maximum Input Voltage: 800 VDC

• 🌞 Recommended Open Circuit Voltage (Voc): 600–700 VDC

• 📈 MPPT Operating Range: 450–600 VDC

• ⚡ MPPT Efficiency: 99%

🌟 Key Features & Advantages

• ✅ Smooth Motor Startup – Reduces wear, saves energy

• ✅ 200% Overload Handling – Delivers peak performance when needed

• ✅ Built-in MPPT Algorithm – Maximizes solar efficiency in real-time

• ✅ Supports AC & DC Input – Versatile for hybrid installations

• ✅ Automatic Sleep & Wake Function – Intelligent operation based on light conditions

• ✅ Heavy-Duty Design – Conformal coating for heat and dust resistance

• ✅ Real-Time Monitoring – LCD display with oscilloscope-style interface

• ✅ Advanced Motor Protections – Dry run, stall, thermal, and overload safety

• ✅ Communication Ready – Integrated Modbus RS485 port

🌍 Best Applications

• 🏜️ Off-Grid Solar Irrigation Systems

• 🚰 Remote Water Supply Projects

• 🐄 Livestock and Cattle Watering

• 💧 Solar Borewell and Tube Wells

• 🌾 Agricultural and Eco-Friendly Projects

🛠️ Why Choose CG-Emotron VSR48013 Solar Pump Drive?

CG-Emotron manufactures its own power components, ensuring seamless compatibility, long-term reliability, and efficient performance. With a rugged build, high MPPT efficiency, and advanced safety protections, this VFD is the ideal solar solution for water pumping systems in remote or power-deficient areas.
