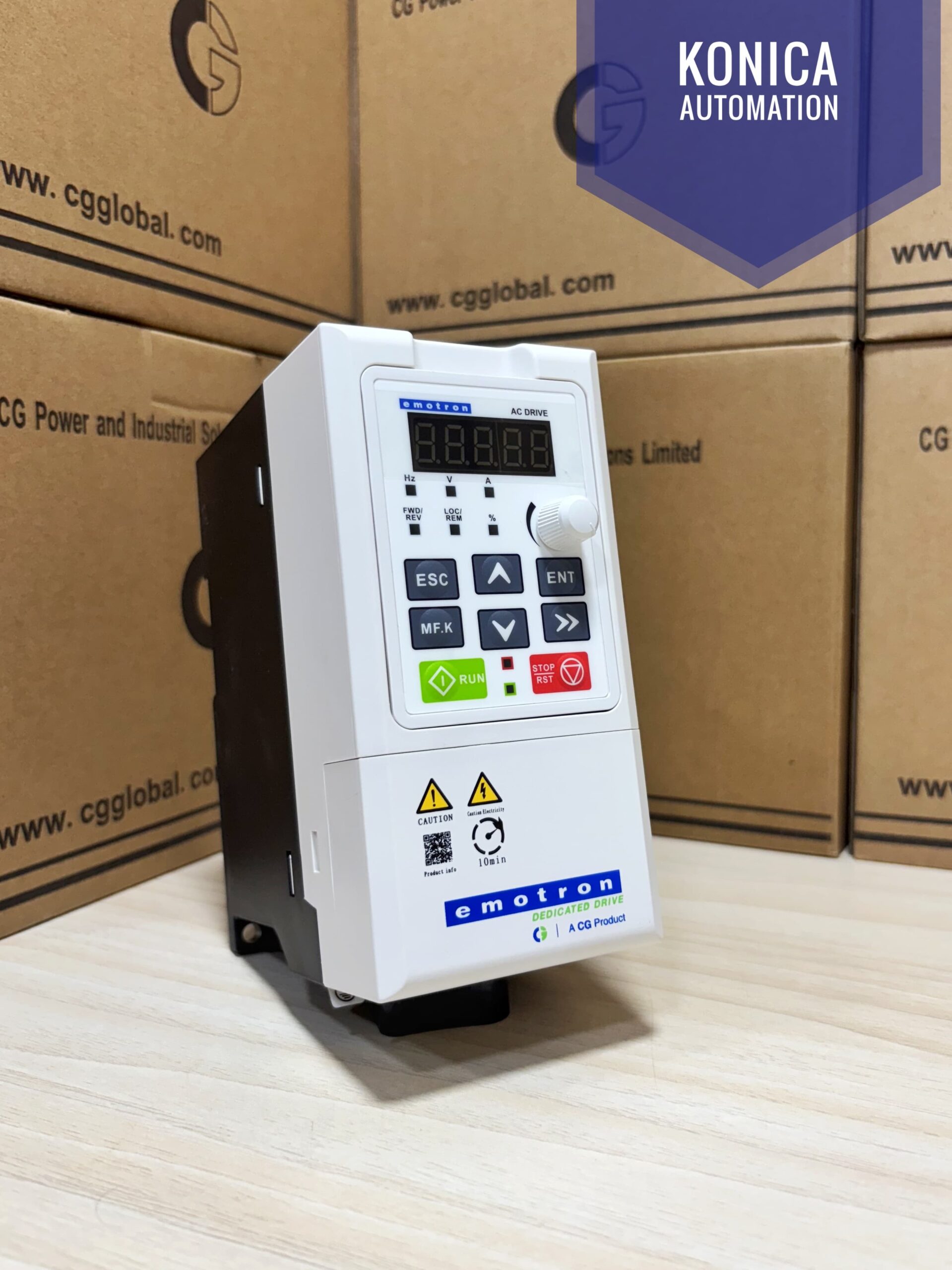

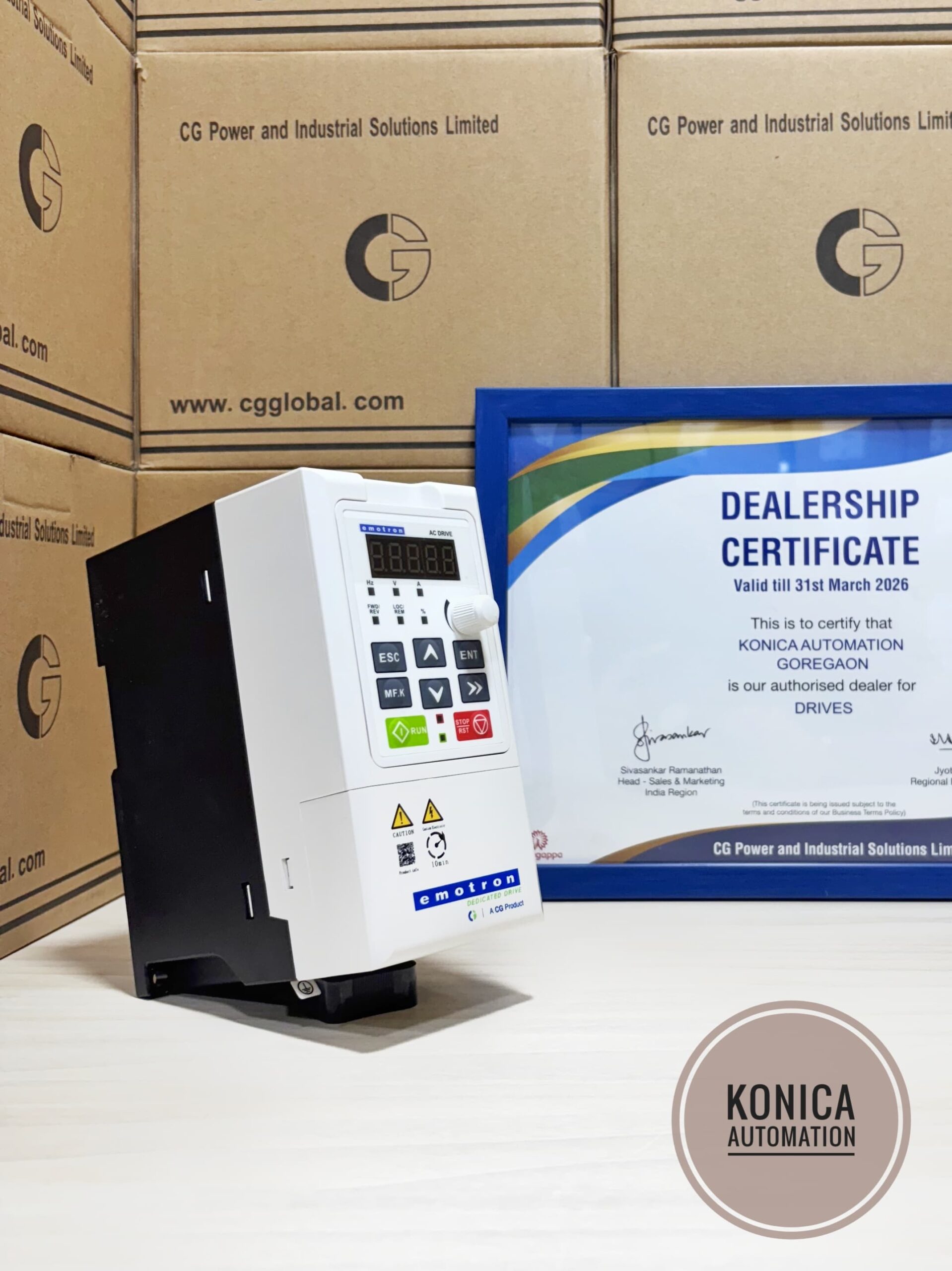

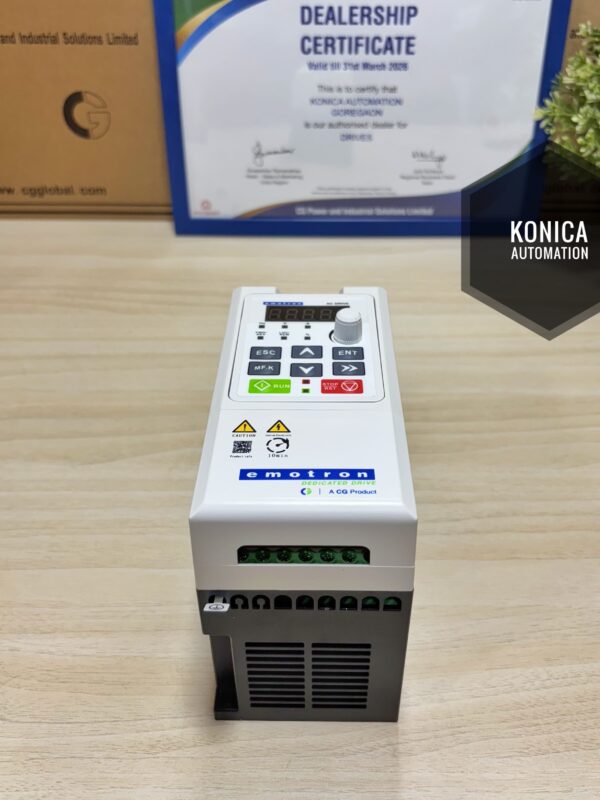

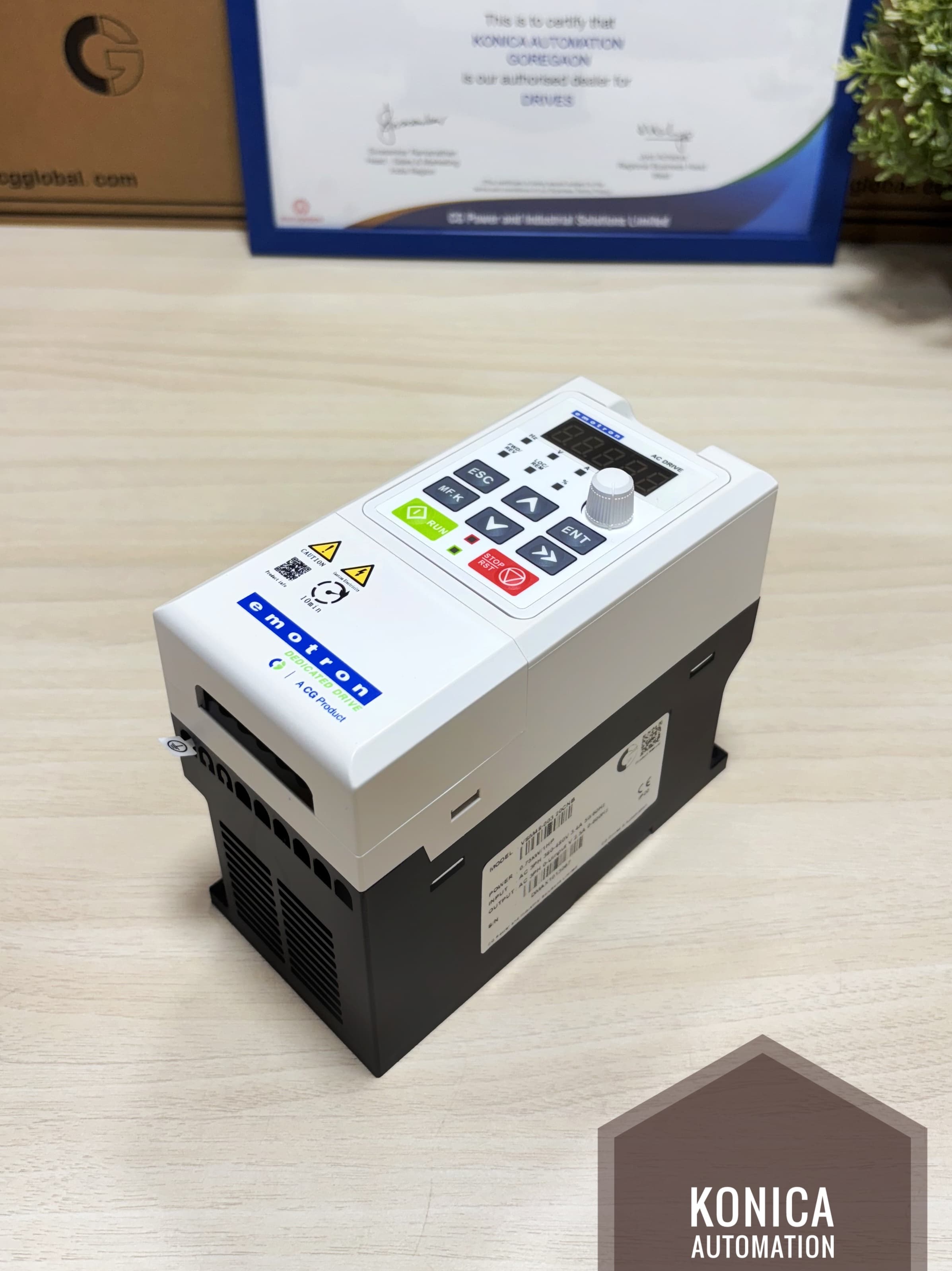

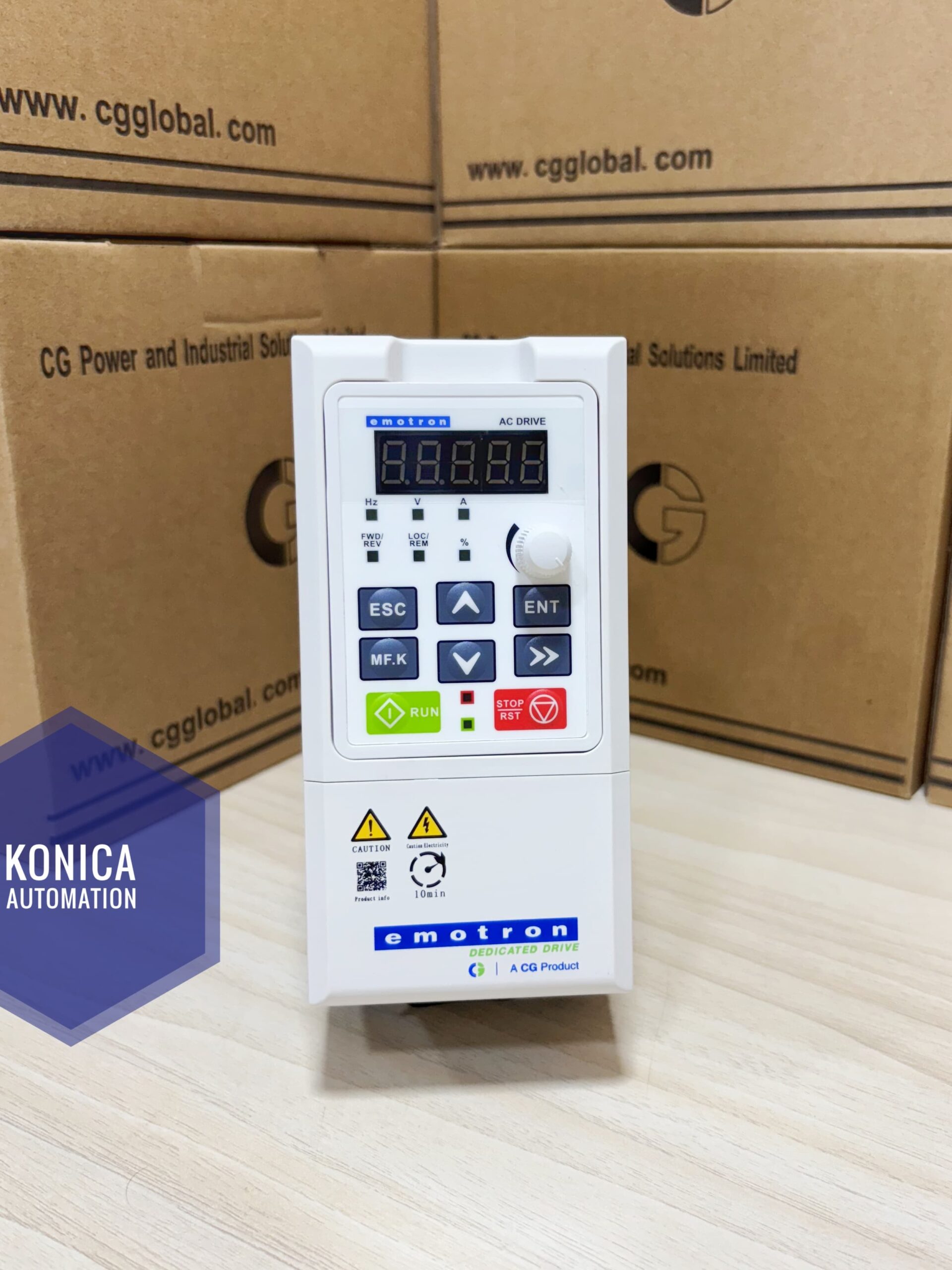

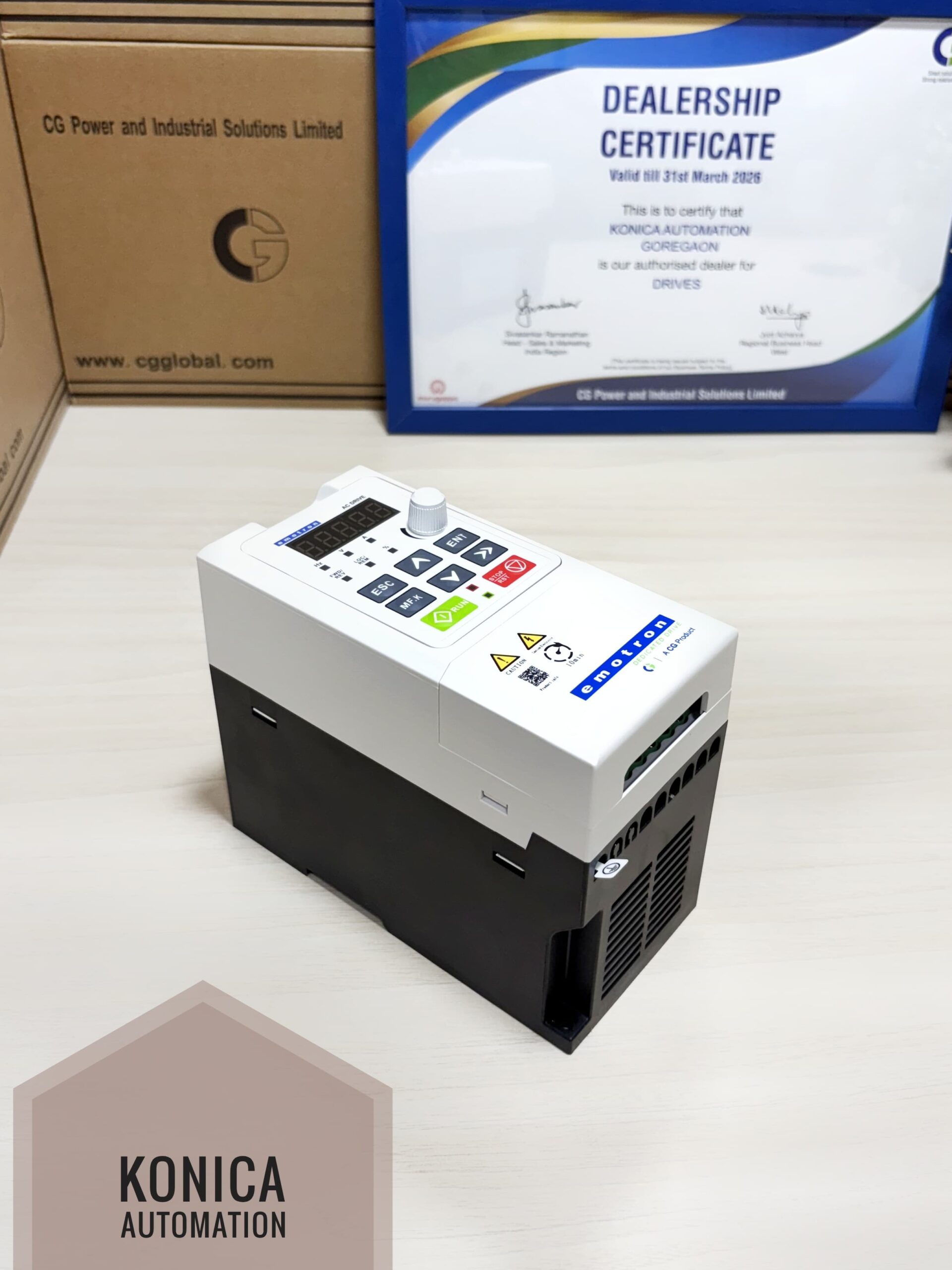

☀️ CG-Emotron VSRE48009 Solar Pumping Drive | 3.7kW Solar VFD
✅ Brand: CG-Emotron
✅ Series: VSR
✅ Model: VSRE48009
🔋 Compact Solar Inverter for Remote Pumping Systems
The CG-Emotron VSRE48009 is a solar-powered variable frequency drive (VFD) engineered for remote and off-grid water pumping. Designed for solar panels, this drive efficiently converts DC power to AC, powering 3.7 kW motors for irrigation, livestock watering, and rural supply systems.
⚡ With built-in MPPT (Maximum Power Point Tracking), it intelligently adjusts to solar input for maximum energy output, even during low sunlight.
⚙️ Technical Specifications:
🔧 Motor Power: 3.7 / 4 kW
🔋 Recommended Solar Array: 6 kWp
🔌 Max DC Input Current: 18 A
🔌 Output Current: 9.5 A
📏 Dimensions: 173 x 93 x 130 mm
⚖️ Weight: 1.5 kg
🔌 Input & MPPT Range:
🌞 Input DC Voltage: 230 – 800 VDC
🌞 Recommended Voc: 600 – 700 VDC
📈 MPPT Range: 450 – 600 VDC
⚡ MPPT Efficiency: 99%
🌟 Key Features & Benefits:
✅ True MPPT tracking – Efficient energy harvesting
✅ Compatible with AC/DC – Flexible off-grid usage
✅ Dry pump detection – Smart water level control
✅ Supports IM & PMSM motors – Versatile compatibility
✅ Sudden irradiance detection – Maintains stable output
✅ PID tuning – Dual sets for smoother control
✅ Auto start/stop – Based on system/time criteria
✅ Built-in Modbus RS485 – Easy monitoring & automation
✅ Compact & durable – Conformal coating for harsh environments
✅ Industry-leading 1-year warranty
🌍 Applications:
🏜️ Solar irrigation systems
🚰 Village & borewell water supply
🐄 Livestock watering
🌿 Eco farms, nurseries & greenhouses
https://drive.google.com/file/d/1kF9JSVxNnEzB5TjyL44fUT6b1tJhEz9p/view
