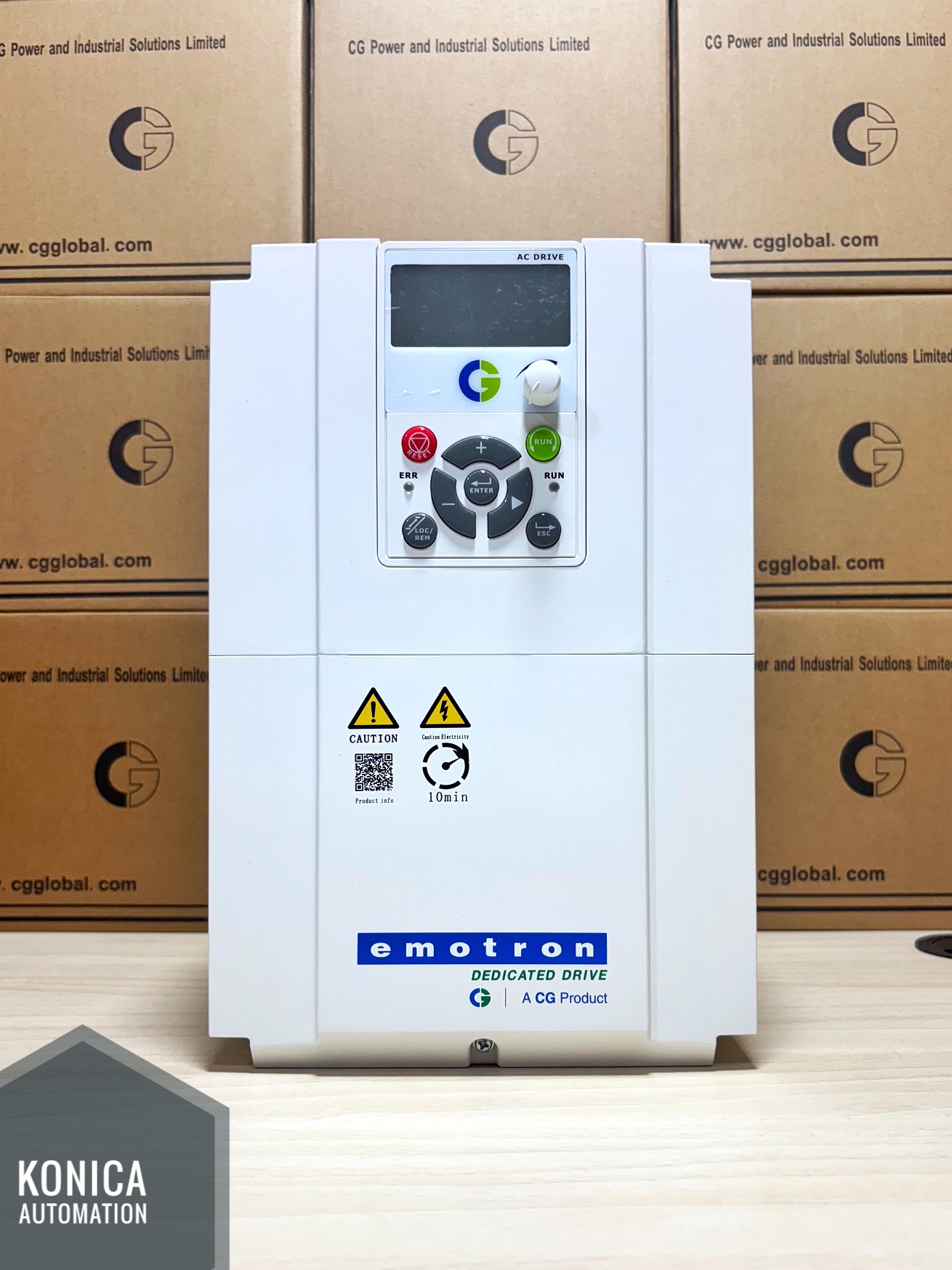

The CG Emotron VSX48-032-20CEB is a high-performance CG Emotron Variable Frequency Drive designed for optimal control of Induction and Permanent Magnet motors. Compact, durable, and packed with intelligent features, this CG Emotron AC Drive is ideal for industrial applications requiring reliability and energy efficiency.
🔧 Key Features:
High-contrast LCD graphical display with integrated oscilloscope.
200% overload handling for 1 second – ideal for heavy-duty starts.
Fast pulse input/output support up to 100 KHz.
Compatible with both Induction and Permanent Magnet Motors.
V/F control options: fully or semi-separated mode.
Onboard PLC with virtual digital I/Os, multi-logic functions, timers, and comparators.
Built-in EMC filter for noise reduction and compliance.
Emo Wizard software simplifies setup and debugging.
✅ Product Benefits:
Delivers high start torque with smooth motor control.
Operates reliably in hot and humid conditions with conformal coated PCBs.
Efficient heat dissipation through a dedicated air and duct system.
Quick setup and low maintenance, ensuring reduced downtime.
📦 Technical Specifications:
Model: VSX48-032-20CEB
Power Output: 15 kW (20 HP)
Current Rating: 32 Amps
Input Voltage: 3 Phase, 380–480 VAC, 50Hz
Weight: 7 kg
Certified: CE

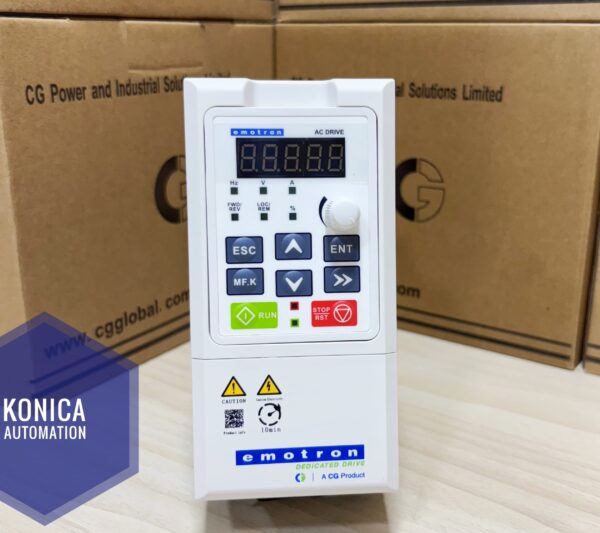

🔄 Available Range (VSX Series):
Power: 0.75 kW to 55 kW
Current: 2.5 A to 112 A
Voltage: 3 Phase, 380–480 VAC
Certification: CE Compliant
https://workdrive.zohoexternal.com/external/f34814196f040a6de51c69168d7157b01ff607d1c10d1533a522bc93624006da/download
