CG Emotron M20 Shaft Power CTM010 — Overview
The CG Emotron M20 Shaft Power CTM010 is available from Konica Automation, ready to ship with full technical support and fast delivery.

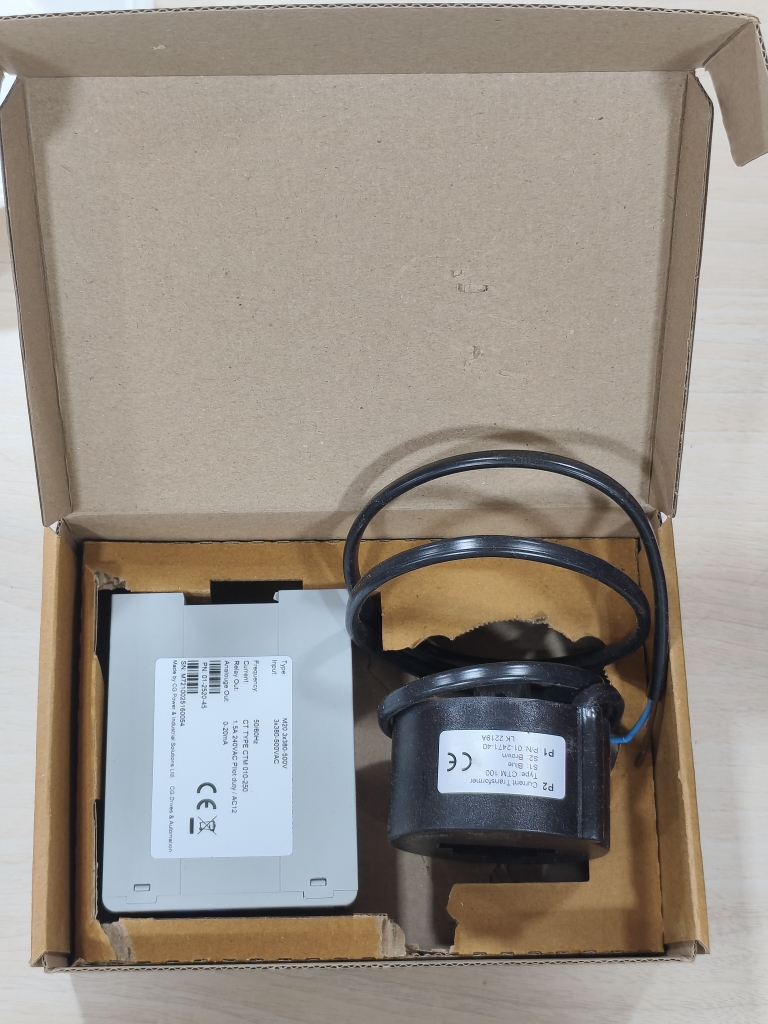

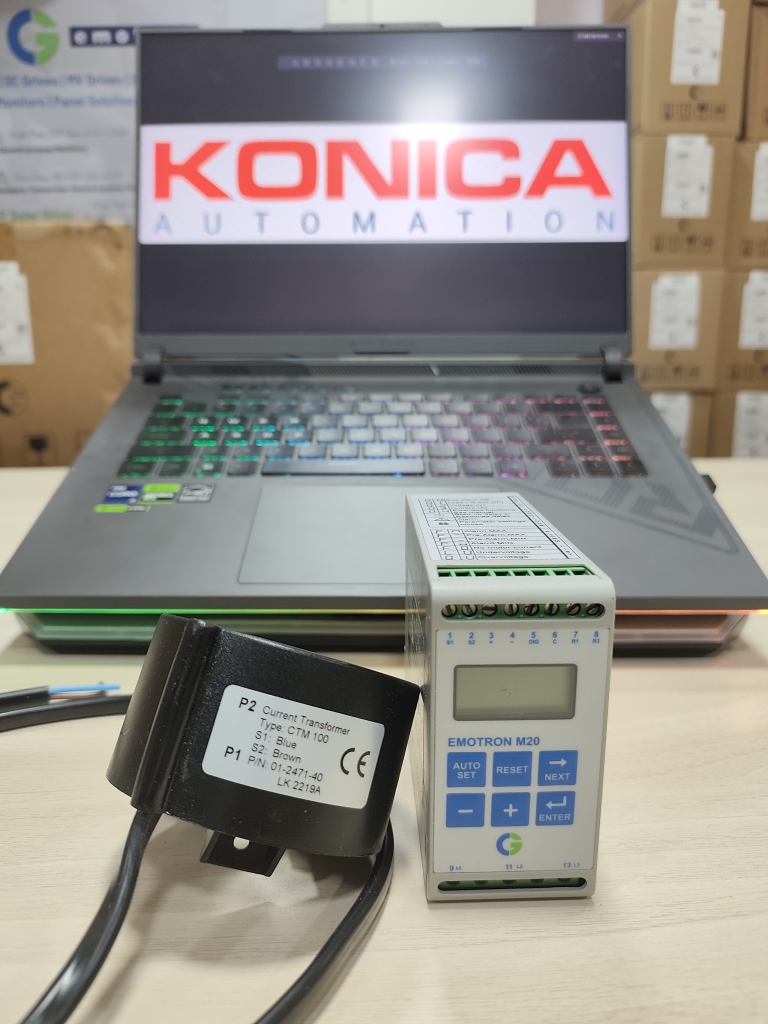

The CG Emotron M20 Shaft Power Monitor with CTM010 is a smart and compact solution for real-time motor load protection. Designed to monitor shaft power output directly, this unit uses your motor as its own sensor — no need for flow switches, pressure sensors, or external transmitters! 🎯💡

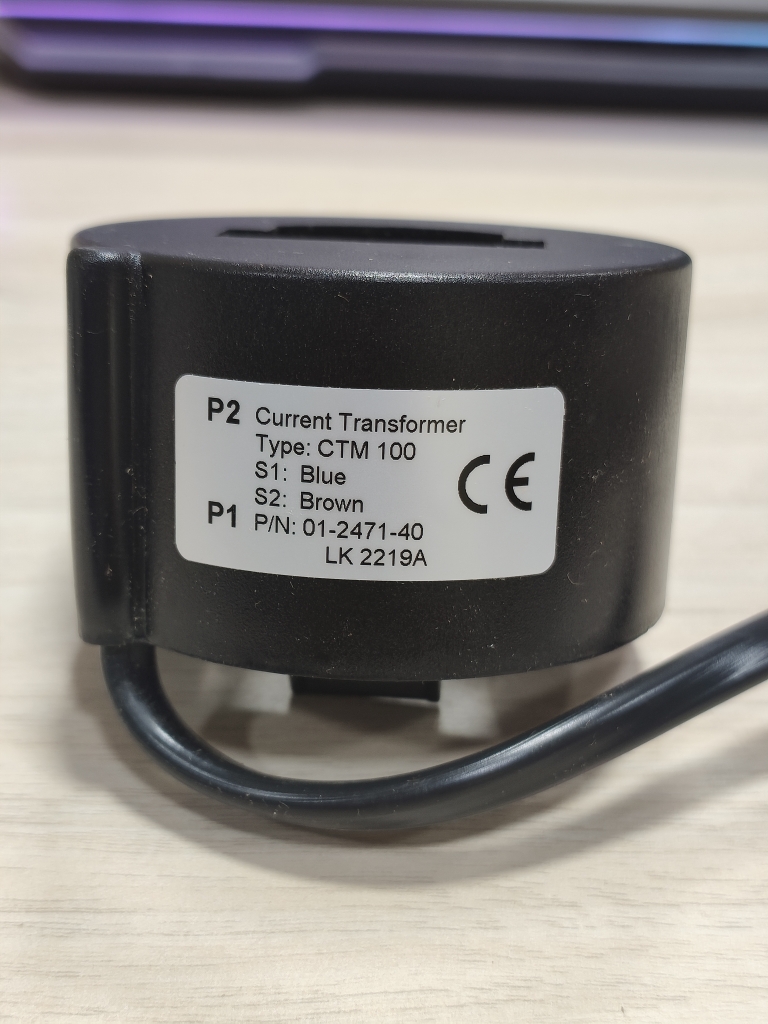

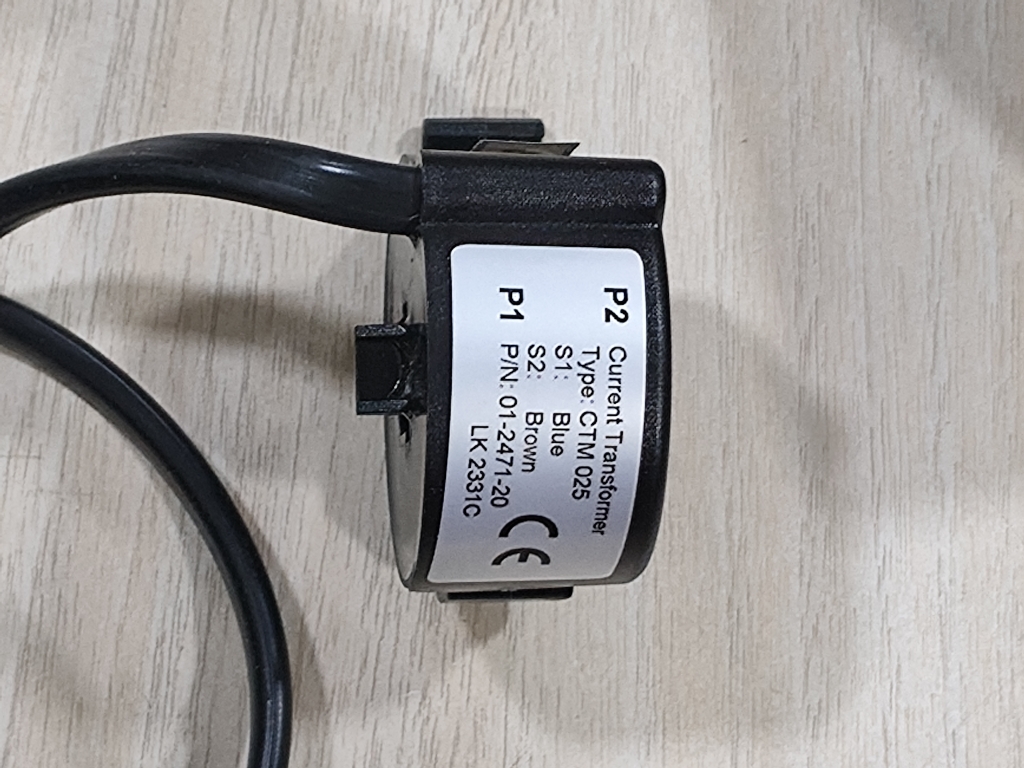

Paired with the CTM010 current transformer, this setup supports up to 10A motor current, making it ideal for small to mid-sized pumps, mixers, fans, and conveyors. 🌀🚿
🔧 Key Features:
✅ True shaft power monitoring using motor current + phase angle
🔧 No external sensors required — lower cost, faster install
⚙️ Auto-Set: Configure 4 protection points in 3 seconds
📈 LED display shows real-time motor load
📊 Analog output for PLC/SCADA integration
🔌 DIN-rail mounting — compact & reliable
📦 Technical Specs:
Model: Emotron M20 + CTM010
Current Range: 0–10A
Supply Voltage: 100–240 VAC / 380–500 VAC / 525–690 VAC
Frequency: 50 / 60 Hz
Relay Outputs: 2 configurable
Analog Output: 4–20 mA / 0–20 mA (scalable)
Display: LED (load %, kW, HP)
Protection: IP20
Mounting: 35 mm DIN rail
Certifications: CE, UL, cUL
🚀 Applications:
🛑 Pumps – dry-run & cavitation protection
⚙️ Mixers – blade detection & viscosity control
📦 Conveyors – jam & no-load detection
💨 Fans & blowers – overload & imbalance alerts
💼 Ready to protect your process with smarter load control?
Get the CG Emotron M20 + CTM010 and avoid downtime, equipment failure, and maintenance headaches! 🛡️🔌
